Outdoor LED Video Wall

Available in P6 and P10 pixel pitches (other models available on request)

SMD LED
SMD LED Technology
Modular Design
Modular Design
Seamless Video Wall
Seamless Video Wall
Ultra High Contrast Ratio
Ultra High Contrast Ratio
quick easy installation
Easy Installation
Lightweight Design
Lightweight Design
Project management
Full Project Management

Weatherproof
IP Rated Enclsoure
2500 cd/m² Brightness
Outstanding High Brightness
ambient lighting sensor
Optional Ambient Light Sensor
easy cms
Easy to Use CMS
front and rear service
Front & Rear Serviceability
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3 Years Warranty
digital signage water proof ip rated digital signage water proof ip rated
image quality
Stunning Image Quality
State of the art SMD-LED technology delivers stunning image quality across the seamless display; certain to garner attention. With advanced video processing technology to produce accurate and vibrant colours with no distortion.
weatherproof
Weatherproof
Designed with a robust aluminium enclosure to give protection from the elements. The outer casing is IP-rated which means it keeps out airborne swarf, dust and other particles as well as being protected from any wet weather conditions.
outstanding brightness
Outstanding High Brightness
With an incredible brightness level of 6,000cd/m2 the LED Video Wall has outstanding visibility. The display is sunlight readable even in direct sunlight instantly catching attention from viewers ensuring your content is always seen.
high contrast ratio
Ultra High Contrast Ratio
With an ultra-high contrast ratio of 6,000:1 the LED Video Walls deliver deeper blacks, vivid colours and clear visibility across the display without sacrificing brightness.
front or rear service
Front or Rear Serviceability

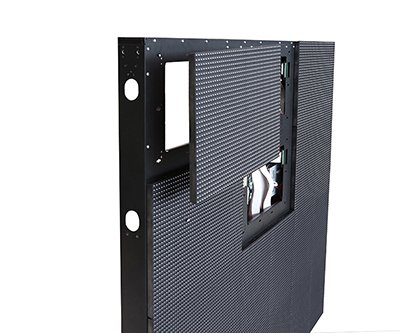

Through an intuitive and easy-to-use maintenance system the LED Video Wall can be serviced from either the front of the display or the rear. The LED modules can be removed quickly and efficiently for convenient maintenance.
easy installation
Easy Installation
Their light and compact design as well as magnetic modules, positioning pins and simple cabinet structure make them ideal for either permanent installations or rental jobs.
lightweight
Lightweight and Slim Design
Each cabinet weighs 28kg and has a depth of 100mm making these screens much easier to install. The lighter weight reduces stress on the mounting structure.
light sensor
Optional Ambient Light Sensor
Ensure that the brightness of your video wall is always at an optimum level. This feature is ideal for displays that are road facing; which need to have variable brightness depending on the time of day.

complete quality control
Complete Quality Control
Every step, from production to installation, goes through a strict quality control procedure while quality calibration guarantees consistent image quality across the whole display.
Optimised Viewing Distances
Optimised Outdoor Viewing Distances
The Outdoor LED Video Walls are designed for longer viewing distances with multiple pixel pitch options depending on your budget and requirements.
bespoke
Bespoke Video Wall Display
Make the most of their modular design as you sculpt the LED Video Wall to fill your space and stand out from the crowd.
IP rated enclosure
IP Rated Enclosure
An IP rating means the LED panels have been through a rigorous testing process ensuring they are able to withstand wet weather conditions and also keep out airborne dust.
LED Outdoor

SPECIFICATION

Full Specification
P6
P10
P6

Pixel Pitch (mm)

6.67

Module Resolution (px)

72×48

Panel Resolution (px) (Front Access)

216×144

Panel Resolution (px) (Rear Access)

144×192
P10

Pixel Pitch (mm)

10

Module Resolution (px)

48×32

Panel Resolution (px) (Front Access)

144×96

Panel Resolution (px) (Rear Access)

96×128
Pixel Pitch

Pixel Pitch (mm)

6.67

Pixel Pitch (mm)

10
LED

LED Type

SMD 2727 3-in-1

Pixel configuration

1R1G1B

Brightness (Calibrated)

≥6,000 cd/m2

Refresh rate

≥1920 Hz

Contrast Ratio

6000:1

Viewing angle

140°

Processing

14 bit

Frame rate

14 bit

Maintenance

Front & Rear Access
Cabinet

Module Size (mm)

480×320

Panel Size (mm)

960x960x120

Net weight (Kg)

28
Power

Input Voltage

AC220/110 ± 10%, 47~63Hz

Average Power Consumption

265W

Maximum Power Consumptiont

750W
Environmental

IP Rating – Front

IP65

IP Rating – Rear

IP54

Operating Temperature

-20ºC to +50ºC

Operating Humidity

10% to 95%

Lifetime

100,000 hours
