PCAP Touch Screen

Category: Brand:
  • 24/7 Usage
  • Built-in Speakers
  • Eco Power Timer
  • Surface Plasma Treatment
  • Touch CMS
  • IPS Panels
  • Adaptable Orientation
  • LED Backlight
  • 10 Touch Points
PCAP-Touch-screen-digital-signage-screen

24/7 Usage

Lorem ipsum dolor sit amet, consectetur

Advanced Connectivity

Lorem ipsum dolor sit amet, consectetur

Enhanced security features

Lorem ipsum dolor sit amet, consectetur

3 year warranty

Lorem ipsum dolor sit amet, consectetur

Support and Training

Lorem ipsum dolor sit amet, consectetur

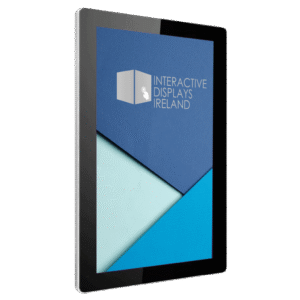

PCAP Touch Screen

The PCAP Touch Screen is a durable, high-performance display built for continuous 24/7 operation. With 10-point multi-touch support, IPS panels, and built-in speakers, it delivers responsive interaction and vibrant visuals — perfect for commercial and professional use.

Designed with features like eco power timer, LED backlighting, Touch CMS compatibility, and adaptable orientation, it offers seamless integration into kiosks, signage, andPCAP-Touch-screen-digital-signage-screen collaborative environments. A surface plasma treatment enhances clarity and durability, making it ideal for demanding applications.

For rental options and managed touchscreen solutions, visit rentascreen.ie and screenfusion.ai.

Applications for PCAP Touch Screen Include:

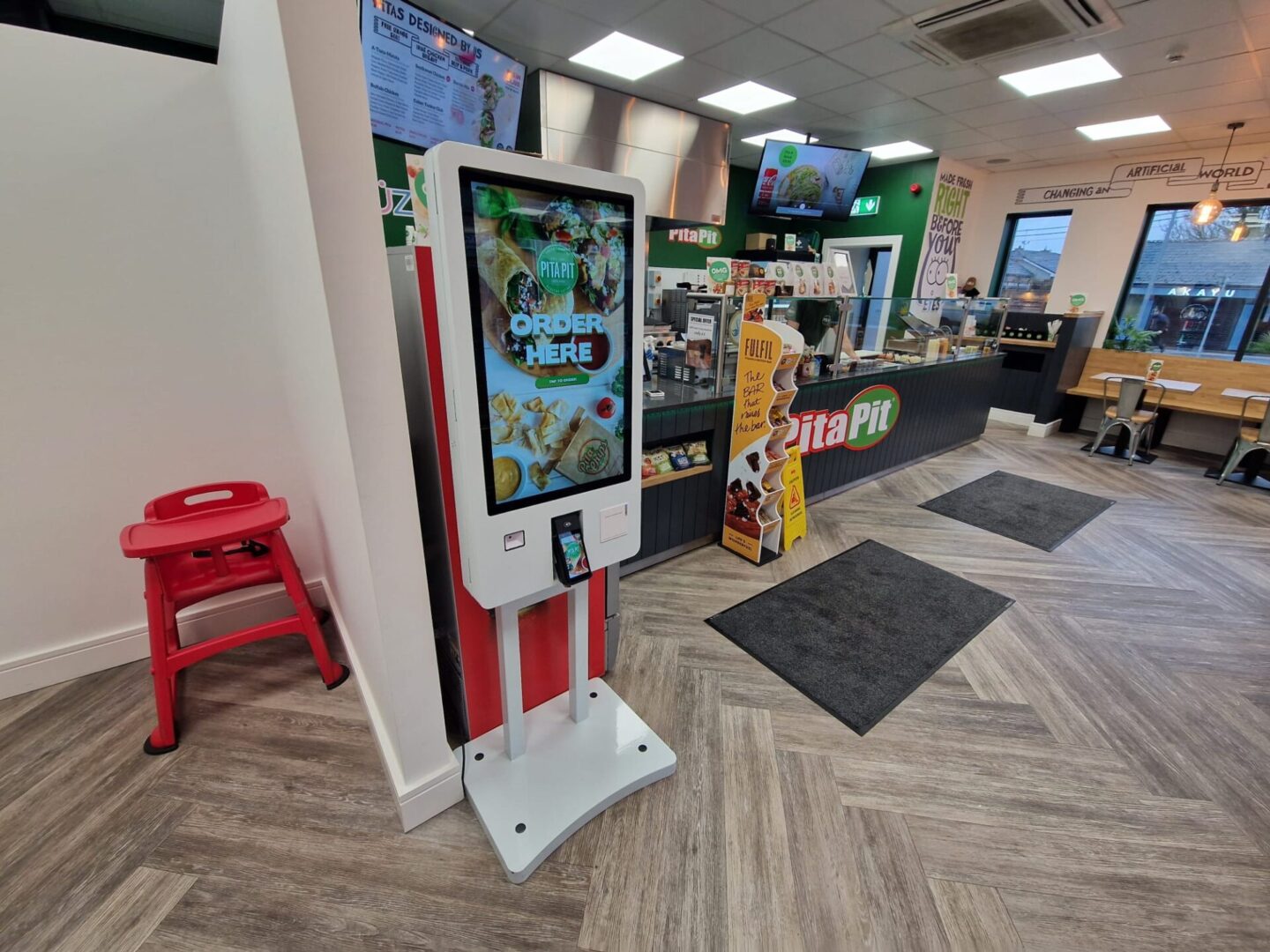

  • Interactive kiosks in shopping centers
  • Touch-enabled wayfinding displays
  • Classroom and training room solutions
  • Self-service terminals in hospitality or retail
  • Boardroom and collaborative office environments



Specifications Specifications Specifications Specifications Specifications Specifications
Specifications Specifications Specifications Specifications Specifications Specifications

Additional information

Panel

Resolution: 1920×1080
Aspect Ratio: 16:9
Brightness (CD/M2): 450
Colour: 16.7M
Viewing Angle: 178°
Contrast Ratio: 5000:1

AV Inputs / Audio

Video: HDMI, VGA,
Control: RS-232
Audio: Audio Socket (3.5mm)
Speaker Type: 2W, 5Ω (x2)
Input Voltage: AC110~240V (50Hz~60Hz)

Environmental

Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 60°C
Operating Humidity: 10% to 80%
Storage Humidity: 5% to 95%

Touch

Touch Technology: Projected Capacitive
Touch Points: 10
Glass hardness: 7H minimum

Accessories

Included:Remote Control, User Manual, Power Cable, USB to USB Cable, Wi-Fi Aerial
Optional:Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand

Computer

CPU: Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)
RAM: 4GB (DDR3L-RS 1600MHz)
Instruction set: 64-bit
Graphic Engine: Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)
Internal Memory: 64GB
USB: 2 x USB 2.0
LAN: 10/100/1000M Ethernet
Wi-Fi: 802.11b/g/n
OS: Android

Available Sizes

  • Model:AO22E3
  • Display Area:478×269
  • Unit Size: 590x383x50
  • Package Size: 725x525x210
  • Vesa Holes: 100×100
  • Net Weight: 9.2kg
  • Gross Weight: 11.65kg
  • Power Consumption: 22watts
  • Model:AO32E3
  • Display Area: 701.4×395.8
  • Unit Size:814x504x69
  • Package Size: 955x630x230
  • Vesa Holes: 400×200
  • Net Weight:18.35kg
  • Gross Weight: 30.2kg
  • Power Consumption: 52watts
  • Model: AO43E3
  • Display Area:942.5×530.5
  • Unit Size: 1048.9×636.9×64.7
  • Package Size: 1188x772x220
  • Vesa Holes: 400X200
  • Net Weight: 24.1kg
  • Gross Weight: 28.4kg
  • Power Consumption: 65watts
  • Model: AO50E3
  • Display Area: 1076×606
  • Unit Size: 1186.6×716.6×65
  • Package Size: 1350x865x270
  • Vesa Holes: 400×200
  • Net Weight: 30.6kg
  • Gross Weight: 36.65kg
  • Power Consumption: 75watts
  • Model: AO55E3
  • Display Area: 1211×682
  • Unit Size: 1319.6×790.6×65
  • Package Size: 1480x950x250
  • Vesa Holes: 400×200
  • Net Weight: 39.15kg
  • Gross Weight: 46.75kg
  • Power Consumption: 85watts
