Promethean Activpanel

Category: Brand:
  • Customizable Profiles
  • Intuitive Operating System
  • Enhanced Security
  • Multi-touch Technology
  • 4 Pens Included
  • Palm Erase Function
  • Instant Start-up
  • Interactive Teaching Tools
promethean-Activpanel

24/7 Usage

Lorem ipsum dolor sit amet, consectetur

Advanced Connectivity

Lorem ipsum dolor sit amet, consectetur

Enhanced security features

Lorem ipsum dolor sit amet, consectetur

3 year warranty

Lorem ipsum dolor sit amet, consectetur

Support and Training

Lorem ipsum dolor sit amet, consectetur

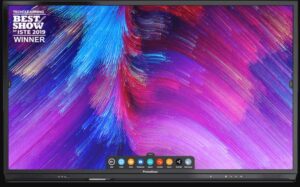

Promethean Activpanel

The Promethean ActivPanel 9 is an all-in-one intehomeractive display solution crafted to empower educators and improve student engagement. With its intuitive interface and responsive performance, teachers can get started immediately—no learning curve required.

Designed specifically for education environments, ActivPanel 9 enables customizable user profiles, allowing teachers to personalize settings and access them from any panel. The ActivePanel OS ensures smooth navigation, while the built-in security features safeguard all user data, giving peace of mind in shared classroom settings.

Included multi-touch support and precision pens enable a natural writing and drawing experience, including palm erase for seamless annotation. With robust collaboration tools and built-in teaching software, ActivPanel 9 transforms classrooms into interactive learning hubs.

Available in 65”, 75”, and 86”, the ActivPanel 9 offers flexibility for various classroom sizes and teaching needs.
promethean-ActivpanelFor rental options and managed touchscreen solutions, visit rentascreen.ie and screenfusion.ai.

Applications for Promethean ActivPanel

  • Primary and Secondary Education
    Empower teachers with interactive tools for dynamic lessons across all subjects.
  • Higher Education and Lecture Halls
    Enhance collaboration and content sharing in colleges and universities.
  • Training Centers and Workshops
    Deliver engaging, hands-on learning experiences in corporate or technical training environments.
  • Special Education Settings
    Use multi-sensory tools to support inclusive and personalized instruction.
  • Hybrid and Remote Learning
    Pair with cameras and digital platforms to support blended education models.
  • Library and Media Centers
    Offer shared, secure learning stations for group projects and digital literacy programs.
Specifications Specifications Specifications Specifications Specifications Specifications
Specifications Specifications Specifications Specifications Specifications Specifications

Additional information

Display

Screen Size and Resolution 65" 4K
75" 4K
86" 4K
Screen Type TFT LCD (Direct LED Backlight)
Blue Light Reduction Yes
Bonded Glass Yes
Aspect Ratio 16:9
Display Area 65" 4K: 1429 x 804 mm (56.3 x 31.7 in)
75" 4K: 1652 x 930 mm (65 x 36.6 in)
86" 4K: 1895 x 1066 mm (74.6 x 41.9 in)
LCD Viewing Angle 178°
LCD Response Time 8 ms
LCD Refresh Rate (Panel) 60 Hz
LED Lifespan 50,000 hours
Contrast Ratio 5000:1 Dynamic 1200:1 Static
Brightness 400 cd/m2
Ambient Light Sensor Yes
Glass Hardness 9H (pencil) , 7 (Mohs)
Glass Type Heat tempered, Anti-Glare

Interactivity

Vellum Touch Technology Yes
Continuous Touch Points 20
Touch Resolution 32768 x 32768 px
Response Time ≤5 ms
Touch Accuracy 1 mm
Tracking Rate 4 m/s
Scan Rate 200 Hz
Gestures and Edge Swipes Windows® supported
Eraser Included (Block Eraser) Yes
Unique Pen IDs 2
Pen and Touch Differentiation Yes
Palm Erase Yes
Palm Rejection Yes, writing and non-writing hand
Pens Included Yes, 4
Pen Type Battery-less pen
Pen Holder Integrated full-length pen tray
Pen Tip Diameter 3 mm (Eraser 7 mm)
Classroom Essential Apps Including Whiteboard, Annotate, Timer,
Spinner, Screen Capture, Screen Share,
Browser, PDF Reader, Media Player
Compatibility Windows® 7 to 11; Mac OS® 10.8 to 10.11;
macOS® Sierra 10.12.1 or later;
Linux® Ubuntu 20.04 LTS; Chrome OS™

Computing

OPS Slot 1
HDMI In (Rear) 2 (1 x 2.0, 1 x 2.1)
HDMI In (Front) 1 (2.0)
Display Port 1 (1.2)
USB-A 2.0 (Rear) 1
USB-C 3.2 (Rear) 1 (100 W Power Delivery)
USB-B 3.0 (Touch, Front) 1
USB-B 3.0 (Touch, Rear) 3
USB-A 3.0 (Front) 2
USB-A 3.0 (Rear) 2
MicroSD Slot Yes
LAN In (RJ45) 1 Gbps
LAN Out (RJ45) 1 Gbps
Wake-on-LAN Yes
Wi-Fi (Client) IEEE 802.11 a/b/g/n/ac/ax,
Wi-Fi 6 and dual band supported
Bluetooth 5.0
HDMI Out 1 (2.0)
VGA In 1
PC Audio (3.5 mm) 1
AV-In (3.5 mm) 1
Mic (3.5 mm) 1
Audio Out (3.5 mm) 1
RS-232 1
Proximity Sensor for Warm Boot Yes
NFC (Near-field Communication) Yes

Physical Specifications

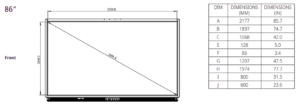

Panel Dimensions 65": 1508 x 945 x 85 mm (59.4 x 37.2 x 3.3 in)
75": 1730 x 1070 x 86 mm (68.1 x 42.1 x 3.4 in)
86": 1974 x 1207 x 86 mm (77.7 x 47.5 x 3.4 in)
Packed Dimensions 65": 1642 x 1072 x 246 mm (64.6 x 42.2 x 9.7 in)
75": 1860 x 1137 x 246 mm (74.6 x 45.7 x 9.7 in)
86": 2102 x 1300 x 246 mm (84.8 x 52.8 x 9.7 in)
Panel Net Weight 65": 44.5 kg (98.1 lb)
75": 57.8 kg (127.4 lb)
86": 73.3 kg (161.6 lb)
Packed Weight 65": 61.5 kg (135.6 lb)
75": 78.5 kg (173.1 lb)
86": 95.7 kg (211 lb)
Wall Mount Dimensions 1010 x 720 x 52 mm (39.8 x 28.3 x 2.0 in)
VESA Mount Point 65": 600 x 400 mm (23.6 x 15.7 in)
75": 800 x 400 mm (31.5 x 15.7 in)
86": 800 x 600 mm (31.5 x 23.6 in)

Environmental / Power

Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -15 °C to 55 °C (-5 °F to 131 °F)
Operating Humidity 20% to 80% non-condensing humidity
Storage Humidity 20% to 90% non-condensing humidity
Power Requirements 100 V – 240 V AC
Energy Star Power Consumption 65" 4K: 119 W
75" 4K: 163 W
86" 4K: 194 W
Power Consumption (Standby) <= 0.5 W
Ultra-Quiet Fanless Design Yes

Available Sizes

promethean-activpanel-65"

promethean-activpanel-75"

promethean-activpanel-86
