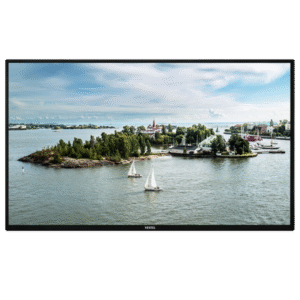

Vestel 43″ STM Series

  • Vestel STM Series 43″
  • Resolution: 1920×1080 (FHD)
  • Brightness: 400 cd/m2
  • Operation: 16/7
  • Bezel: 9-11 mm (T/R/L), 13-15 mm (B)
  • Interface: HDMI 2.0 / VGA / USB/ RS232 / RJ45 / RJ12 for sensors/ IR / HP / Audio / Speaker
  • Application Area: Retail, Restaurants QSR

Original price was: €589.00.Current price is: €499.00.

In stock (can be backordered)

(1 customer review)

Description

Vestel STM Series 43″

Touch Support:
Our touch screens are compatible with this series. Infrared (IR) Touch Screens is designed to equip your current product with user-interactivity allowing the display to be smart display and many interactive applications to be enjoyed by the end users. The design also permits any person to overlay the touch screen on the display easily.

Signal Failover:
Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.

Daisy Chain:
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Scheduler:
Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

Usb Auto-Play:
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Optional OPS Support:
All our products in this series have an optional OPS (Open Pluggable Standard) slot. OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.

Pixel Shifting:
Pixel Shifting is designed to be activated inside the SoC in order to prevent for potential risk of image sticking, caused by constant content. With this feature turned on, pixels on the screen will move in an interval while causing no interference of visual experience.

Display Control:
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

SoC Content Management:
With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Built-in Connectivity:
This series features wired and wireless connectivity such as embedded WiFi and Bluetooth. Due to the wireless capabilities, the displays can easily gather its content without any external device. Moreover, WiFi allows screen sharing to be enjoyed with Miracast.

Subtle Design:
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.

Auto Launch:
We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.

Usb Security:
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Source Switching:
It is made available to set any Source on startup of the display. It can also be switched on any other signal source using scheduler and failover scenarios. This lets the users to freely control the process of their requirements allowing best user experience.

Operation Time Support:
Professional Panels used with this series are quality confirmed to operate 16 hours a day without any issues. Upon this, the series come with 400 Nits brightness levels suitable for medial indoor environment.

USB Content Scheduling:
USB Content schedules allows you to create playlists of content and schedule them throughout the week. These can then be cloned across multiple displays through USB cloning.

SoC:
HTML-5 based applications can be developed to work directly within the SoC platform of our displays. The displays are capable of working in either online or offline mode.

Boot Up Picture:
Display your company logo or other messaging during boot up, or when no signal is received.

HDMI Wake Up:
To maximize the user experience while using external video devices such as mediaplayers, display controllers or PCs, all our devices have HDMI Wakeup feature ready to turn on/off the display by simply pluging/unplugging the HDMI cable.

Additional information

Display

Screen Size: 43"
Panel Technology: IPS
Backlight Type: Direct-Type LED
Brightness (typical): 400 cd/m²
Native Resolution: 1920 x 1080 (16:9) – FHD
Contrast Ratio (typical): 1000:1
Dynamic Contrast Ratio: 40000:1
Panel Life Time ( Min. ): 50000 Hrs
Response Time (typical): 6 ms
Active Area (H x V): 941 x 530 mm
Pixel Pitch (H x V): 0.4902 x 0.4902 mm
PPI (pixel per inch): 52
Viewing Angle: 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value: 16.7 M (8-bit)
Screen Treatment: 3H
Haze Level: 1%
Refresh Rate: 60 Hz
Front Type: Ultra Narrow Bezel
Orientation: Horizontal
Operation Hours: 16/7
Area of Usage: Indoor

Built-in System

Mainboard Model: 17MB135VS

Rear I/Os

RGB Input: VGA(DE-15F)
RGB Output: N/A
Video Input: 2xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video Output: HDMI2.0
Audio Input: Line In L/R
Audio Output: Headphone, Optic SPDIF
External Control: RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor: RJ12

Mechanical

Product Dimensions (WxDxH): 966 x 106 x 557 mm
Package Dimensions (WxDxH): 1050 x 178 x 718 mm
Product Weight: 10.3 kg
Package Weight: 13.65 kg
Vesa Mounting: 200 x 200 mm – M6
Bezel Width: B:13, T:9, L/R:10 mm

Environmental

Operating Temperature: 0-40°C
Operating Humidity: 10-90%

Power

Power Supply: 110 VAC – 240 VAC – 50/60 Hz

Power Consumption

Typical: 62 W
Maximum: 160 W
Deep Standby: ≤0.5 W

Features

Main Features: Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock
Mechanical Features: Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying slots, Detachable logo positioning, Internal usb cover, Cable Holder
Optional Features: OPS Compliance, IR Overlay Touch Compliance
Speaker: 2 x 8 W

Accessory

Standard: QSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable

Certification

Safety: YES
EMC: YES
CE: YES
