PCAP Kiosk Screen

Category: Brand:
  • 24/7 Usage
  • Built-in Speakers
  • Eco Power Timer
  • Surface Plasma Treatment
  • 10 Touch Points
  • IPS Panels
  • Adaptable Orientation
  • LED Backlight
PCAP-Kiosk-screen-Touchscreen-Kiosk-digital-signage-screen

24/7 Usage

Lorem ipsum dolor sit amet, consectetur

Advanced Connectivity

Lorem ipsum dolor sit amet, consectetur

Enhanced security features

Lorem ipsum dolor sit amet, consectetur

3 year warranty

Lorem ipsum dolor sit amet, consectetur

Support and Training

Lorem ipsum dolor sit amet, consectetur

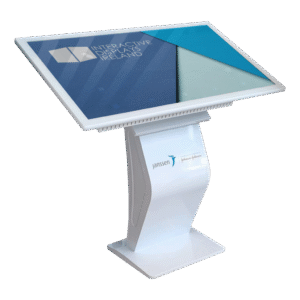

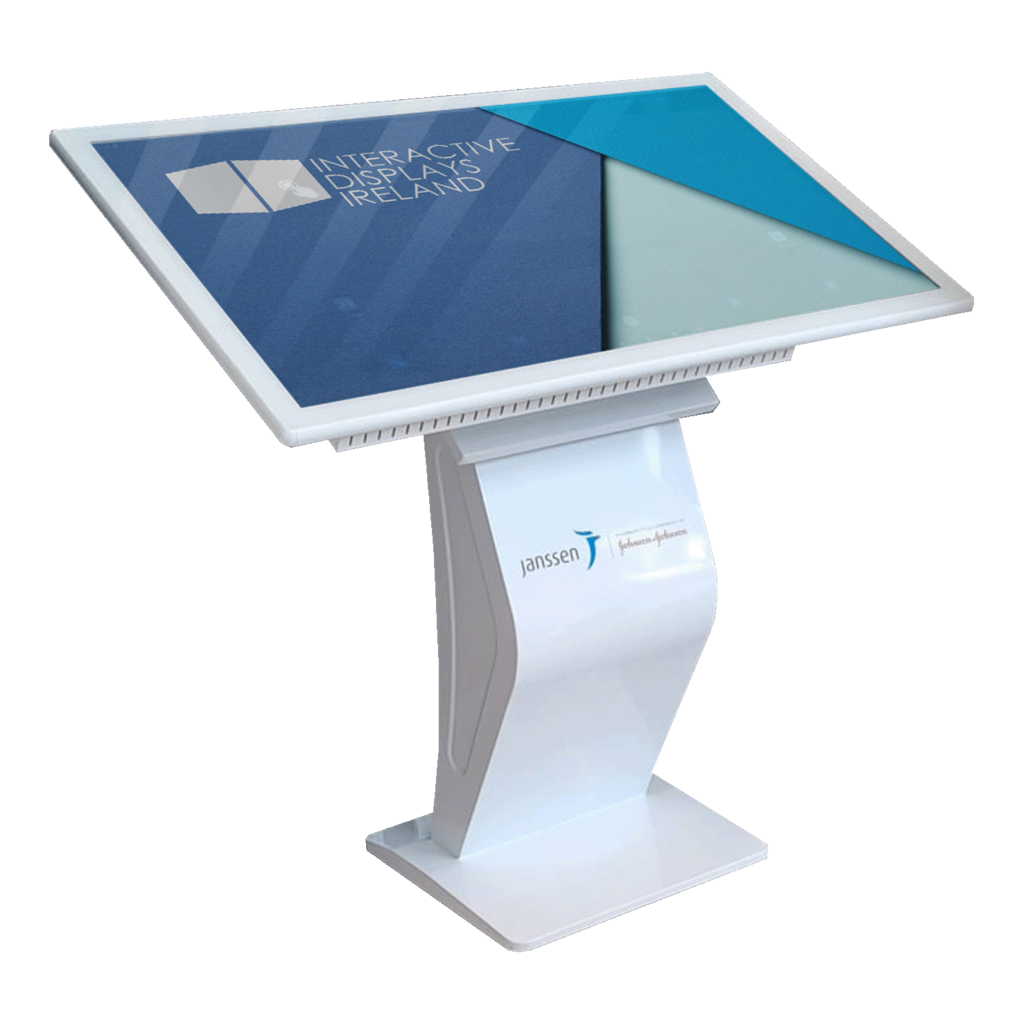

PCAP Kiosk Screen

The PCAP Kiosk Screen combines advanced projected capacitive touch technology with a sleek, modern kiosk design built for commercial environments. With 10-point multi-touch, IPS panels, and edge-to-edge glass, it offers a highly responsive and intuitive user experience that feels just like a giant tablet.

PCAP-Kiosk-screen-Touchscreen-Kiosk-digital-signage-screenBuilt for both style and durability, it features a tempered front, aluminium bezel, and plasma-treated surface for clarity and longevity. With an adaptable orientation, LED backlight, and ergonomic layout, the kiosk display fits seamlessly into self-service setups, wayfinding stations, and interactive spaces.

For rental options and managed touchscreen solutions, visit rentascreen.ie and screenfusion.ai.

Applications for PCAP Kiosk Screen Include:

  • Interactive kiosks in shopping centers

  • Touch-enabled wayfinding displays

  • Classroom and training room solutions

  • Self-service terminals in hospitality or retail

  • Boardroom and collaborative office environments

Specifications Specifications Specifications Specifications Specifications Specifications
Specifications Specifications Specifications Specifications Specifications Specifications

Additional information

Panel

Resolution: 1920×1080
Aspect Ratio: 16:9
Brightness (CD/M2): 450
Colour: 16.7M
Viewing Angle: 178°
Contrast Ratio: 5000:1
Footprint: 800×500

AV Inputs

Video: HDMI, VGA, BNC
Control: RS-232
Audio: Audio Socket (3.5mm)
Speaker Type: 2W, 5Ω (x2)
Input Voltage: AC110~240V (50Hz~60Hz)

Environmental

Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 60°C
Operating Humidity: 10% to 80%
Storage Humidity: 5% to 95%

Touch

Touch Technology: Projected Capacitive
Touch Points: 10
Glass hardness: 7H minimum

Computer

CPU: Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)
RAM: 4GB (DDR3L-RS 1600MHz)
Instruction set: 64-bit
Graphic Engine: Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)
Internal Memory: 64GB
USB: 2 x USB 2.0
LAN: 10/100/1000M Ethernet
Wi-Fi: 802.11b/g/n
OS: Android /Windows

Accessories

Included:Remote Control, User Manual, Power Cable, USB to USB Cable, Wi-Fi Aerial
Optional:Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand

Available Sizes

  • Model: MOY-43PCAPKS
  • Display Area: 942.5×530.5
  • Unit Size: 1048.9x1246x534.25
  • Package Size: Box 1: 1003x678x435 Box 2: 1180x772x230
  • Net Weight: 66.55kg
  • Gross Weight: 77.25kg
  • Power Consumption: 65watts
  • Model: MOY-50PCAPKS
  • Display Area: 1076×606
  • Unit Size: 1186x1285x599.4
  • Package Size: Box 1: 1003x678x435 Box 2: 1350x865x260
  • Net Weight: 73.05kg
  • Gross Weight: 85.50kg
  • Power Consumption: 75watts
  • Model:MOY-PCAP55KS
  • Display Area: 1211×682
  • Unit Size: 1319.6x1320x660.2
  • Package Size: Box 1: 1003x678x435 Box 2: 1480x950x250
  • Net Weight: 81.60kg
  • Gross Weight: 95.60kg
  • Power Consumption: 85watts
