Android Cloud Network Media Player with Live Input (with CMS Software)

Live Feed Zone

Live TV Feed
Network product

Cloud Based Software
Integrated Android Media Player

Android Media Player
Wireless Wi-Fi connection

Wi-Fi Connection
LAN Connection

LAN Connection
multiple media zones

Multiple Media Zones
scheduling software

Scheduling Software
24/7 Usage

24/7 Usage
Multiple AV Inputs

Multiple AV Inputs
Eco Friendly Power Timer

Eco Friendly Power Timer
Scrolling Text Zone RSS Zone

Scrolling Text/RSS Feed
Lifetime Technical Support

Lifetime Technical Support
Three Year Warranty

3 Years Warranty
Live Feed Zone

Live TV Feed

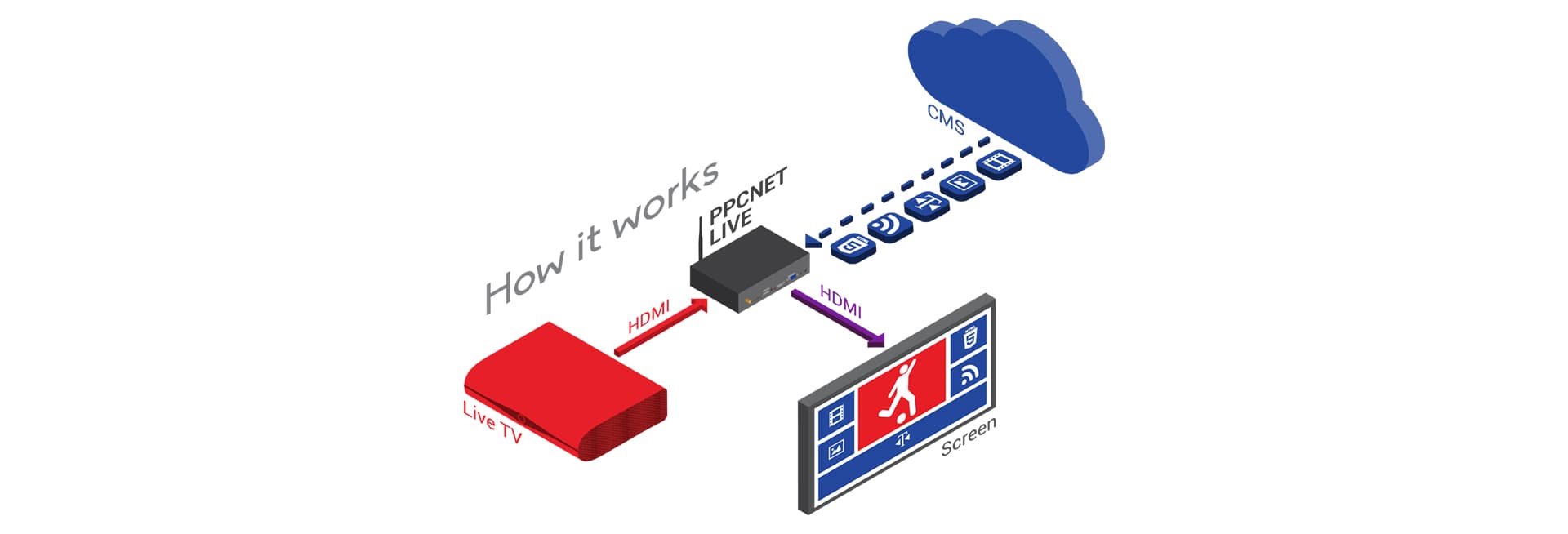

Transform existing screens into cloud based Digital Advertising Displays with a live television input. Simply connect a set-top box or desired input source into the media player via HDMI or VGA. Then connect the media player to a screen via HDMI or VGA and you can control the screen’s content via our CMS. It couldn’t be simpler to integrate live TV with Digital Signage.

Integrated Android Media Player

Android Media Player

Their integrated Android PC board provides a super fast processing speed allowing for improved communication with the CMS. This means that you can update your screens quicker than ever before. It also allows you to display a live website; this can be anything from a live URL feed provided by a third party to your social media profile.

Remote Updates from anywhere in the world

Update from Anywhere

Content can be uploaded and managed from anywhere in the world via our web portal (www.MySignagePortal.com). Simply login, upload your images and videos to our secure server and send them directly to your screens.

custom layouts

Create Custom Layouts

This allows you to deliver targeted content and display your images, videos, webpages, time and date exactly how you want to, you can even add scrolling messages. Add your logo to your content and use your corporate colours in the template design to maintain brand consistency.

Scheduling Software

Schedule Playlists

You can determine exactly what content is displayed and when. Create playlists that will automatically display your desired content at pre-determined times and dates. Whatever your scheduling requirements, our system can support them.

Remote Screen Functions

Remote Screen Functions

You can control most of your screen’s functions via the CMS, such as playing and stopping content as well as volume control and scheduling On/Off times; a truly centralised solution.

Multiple Users

Manage Your Users

You may wish to limit some functions or zones to specific users. For example you may wish to allow a receptionist to have access to the screen in the reception area but nothing else – our system allows full user rights control.

Playback Logs

Review Your Playback Logs

Records are kept from all screen and user activity so as you can monitor the usage and effectiveness of your content.

Multiple AV Inputs

Connectivity

Connecting the Cloud Network Media Player to your screen via HDMI or VGA allows you to update your screen either wirelessly (via a Wi-Fi network) or via a Local Area Network (LAN) connection; both options are available with this media player. We can also offer a 4G solution if the location does not already have internet access.

multiple media zones

Supported Files and Formats

Our network solutions can support a wider range of files and formats than the standalone versions. From standard file formats such as images (JPG, GIF, BMP, PNG), video (MPG, AVI, MP4, RM, RMVB, TS) and audio (MP3, WMA) you can now display Office Document files. Your Word, Excel and PowerPoint files can now be directly sent to your advertising display alongside PDF’s. RSS feeds are also available in the form a scrolling text ticker on screen. Websites with HTML5 can also be shown on your display, great for displaying dynamic online content or even social media feeds.

Digital Signage Multimedia Players with Software

SPECIFICATION

AV Inputs/Outputs

VIDEO

HDMI, VGA

AUDIO

Stereo Analog Audio Socket (3.5mm)

Power

POWER CONSUMPTION (W)

<5

INPUT VOLTAGE

AC110~240V (50Hz~60Hz)

Mechanical

UNIT SIZE

189×113.36×39.6

PACKAGE SIZE

201x134x111.4

NET WEIGHT

0.35kg

GROSS WEIGHT

0.55kg

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Computer

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

MEDIA RESOLUTION

1920×1080/1080×1920

INTERNAL MEMORY

6GB

CPU

Duel-Core Cortex-A9 @1.6GHz

GPU

Mali-400 MP4 @400MHz

RAM

1GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

WI-FI

802.11b/g/n (Network version screen only)

OS

Android 4.2.2

GRAPHIC ENGINE

OpenGL ES 1.1/2.0, OpenVG 1.1

Accessories

INCLUDED

HDMI Cable, Scheduling Software, Remote Control, User Manual
