PCAP Touch Screen Kiosk with Dual OS
pcap touch

PCAP Touch
Integrated Dual Android Windows OS

Dual OS
Internal Locker

Internal Locker
Commercial grade IPS Panel

Commercial Grade IPS panel
Portrait or Landscape Orientation

Landscape/Portrait Orientation
Wireless Wi-Fi connection

Integrated WI-Fi
Ten Touch Points

10 Touch Points



Rear Connections

Rear Connections
24/7 Usage

24/7 Usage
No External PC

No External PC Required
Integrated Speakers

Integrated Speakers
anti fingerprint

Anti Fingerprint/ Smooth Gestures
Lifetime Technical Support

Lifetime Technical Support
Three Year Warranty

3 Years Warranty
Integrated Dual Android Windows OS

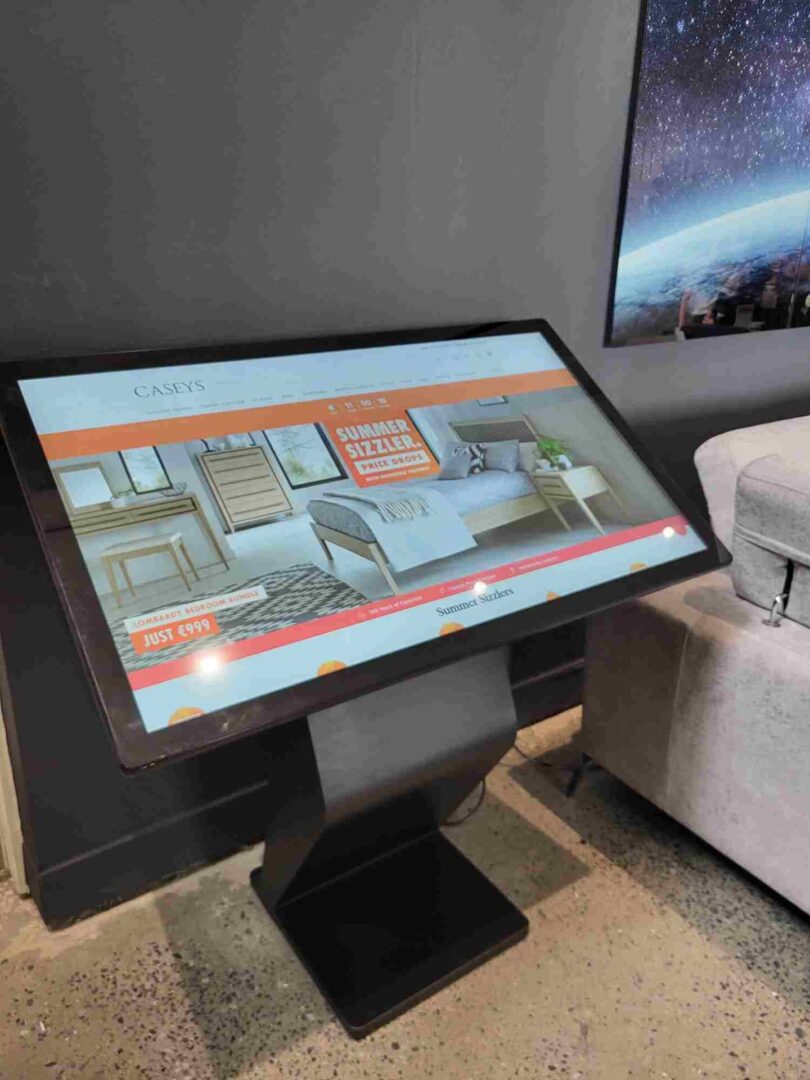

All-in-One Touch Kiosk

This all-in-one interactive display combines the best in PCAP Touch Screen technology with a stylish and secure kiosk. The screen resembles a giant tablet with the edge to edge glass tempered front and aluminium bezel. Designed for use in commercial applications the easy to use ergonomic design allows users to interact with the screen perfectly. The striking design, along with the built in dual OS PC, sets this solution apart from other touch screens on the market both in terms of functionality and aesthetics.

Integrated Dual Android Windows OS

Dual OS

Experience the most versatile commercial touch screen kiosk on the market. With both Android and Windows operating systems built in to the integrated PC it cannot be beaten on flexibility; this screen has it all in one convenient package.

Ten Touch Screen

PCAP Touch

State of the art Projected Capacitive interactive technology offers the most responsive touch experience available while featuring sleek edge-to-edge glass. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface. Our screens boast 10 touch points, allowing for smart phone-like touch gestures and multiple users, as well as offering superior optical quality.

anti fingerprint surface plasma treatment

Surface Plasma Treatment

Not only is the front glass face tempered, which makes it more durable and suitable for public use, but it is also plasma treated to give it an oleophobic coating. What this means is that it is more resistant to surface oil and moisture which reduces the residue left my fingerprints. It also lowers the surface tension and friction, making touch gestures much smoother, improving the overall tactile experience for the user. All this is achieved without having an etched finish which means that the overall optical clarity is maintained to the maximum level.

IPS Panel

IPS Panel

Accurately displays image quality and colour depth at a 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for mounting in either landscape or portrait orientation (43” and 50” versions only).

LED Backlight

LED Backlight

The LED backlight used is not only eco-friendly but also ensures the display has enhanced brightness and contrast. This technology increases the lifespan and reduces the power consumption by around 30%. This form of light technology is mercury free; safeguarding this screen’s eco friendliness.

24/7 Usage

24/7 Usage

Built with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets. The panel also has a lifespan of over 70,000 hours of continuous use.

Internal Locker

Internal Locker

The touch screen kiosk is an all-in-one solution with the integrated PC with Windows and Android. However if you want to connect an external PC or media player there is a secure and discrete internal locker on the rear of the display that allows you to integrate such devices seamlessly. Simply connect your device to the screen via VGA or HDMI (for the video signal) and USB (for the touch functionality). The screen will then serve as your computer’s interactive monitor. You can also extend the connections on your device, such as the USB ports, LAN port, Wi-Fi aerial and power cable to the external ports on the rear of the kiosk.

Touch CMS

Rear Connectivity

Once your kiosk is in place you can use the ports on the rear of the base to conveniently connect your USB, Ethernet cable, power cable or Wi-Fi aerial direct to the Touch Screen. The rear connections work whether you are using the built in PC or a third party device inside the internal locker.

Touch CMS

Touch CMS

The PCAP Touch Screen Kiosk can be used as a touch monitor if you connect your own PC or you can run your own touch software from the integrated Dual OS PC board with Windows and Android. However you can use our ground breaking new Touch Cloud Management System that puts you in control as you create and deploy your very own interactive content. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Then you can let the content do the talking for your brand, company, service or product.

SPECIFICATION

43 Inch – TAO43E3

DISPLAY AREA

942.5×530.5

UNIT SIZE

1048.9x1246x534.25

POWER CONSUMPTION (W)

65

NET WEIGHT

66.55kg

GROSS WEIGHT

77.25kg

PACKAGE SIZE

Box 1: 1003x678x435
Box 2: 1180x772x230

Panel/Mechanical

RESOLUTION

1920×1080

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

450

VIEWING ANGLE

178°

CONTRAST RATIO

5000:1

COLOUR

16.7M

FOOTPRINT

800×500

Touch

TOUCH TECHNOLOGY

Projected Capacitive

TOUCH POINTS

10

GLASS HARDNESS

7H minimum

AV Inputs/Audio

INPUTS (WHEN USED AS MONITOR)

HDMI, VGA, RS-232

AUDIO INPUT (WHEN USED AS MONITOR)

Audio Socket (3.5mm)

AUDIO OUTPUT (INTERNAL PC)

Audio Socket (3.5mm)

SPEAKER TYPE

2W, 5Ω (x2)

Power

INPUT VOLTAGE

AC110~240V (50Hz~60Hz)

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Computer

CPU

Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)

RAM

4GB (DDR3L-RS 1600MHz)

INSTRUCTION SET

64-bit

GRAPHIC ENGINE

Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)

HARD DRIVE/INTERNAL MEMORY (EMMC)

64GB

USB

2 x USB 2.0

LAN

10/100/1000 Ethernet

WI-FI

802.11b/g/n

OS

Android 5.1.1
Windows® 8 /8.1 64-bit, Windows® 10 64-bit,
Windows 10 IoT Enterprise 64bit (licence purchased separately)

OTHER

No accessible buttons or controls

Accessories

INCLUDED

Remote Control, User Manual, Power Cable,
USB to USB Cable, Wi-Fi Aerial

OPTIONAL

Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand

50 Inch – TAO50E3

DISPLAY AREA

1076×606

UNIT SIZE

1186x1285x599.4

POWER CONSUMPTION (W)

75

NET WEIGHT

73.05kg

GROSS WEIGHT

85.50kg

PACKAGE SIZE

Box 1: 1003x678x435
Box 2: 1350x865x260

Panel/Mechanical

RESOLUTION

1920×1080

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

450

VIEWING ANGLE

178°

CONTRAST RATIO

5000:1

COLOUR

16.7M

FOOTPRINT

800×500

Touch

TOUCH TECHNOLOGY

Projected Capacitive

TOUCH POINTS

10

GLASS HARDNESS

7H minimum

AV Inputs/Audio

INPUTS (WHEN USED AS MONITOR)

HDMI, VGA, RS-232

AUDIO INPUT (WHEN USED AS MONITOR)

Audio Socket (3.5mm)

AUDIO OUTPUT (INTERNAL PC)

Audio Socket (3.5mm)

SPEAKER TYPE

2W, 5Ω (x2)

Power

INPUT VOLTAGE

AC110~240V (50Hz~60Hz)

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Computer

CPU

Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)

RAM

4GB (DDR3L-RS 1600MHz)

INSTRUCTION SET

64-bit

GRAPHIC ENGINE

Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)

HARD DRIVE/INTERNAL MEMORY (EMMC)

64GB

USB

2 x USB 2.0

LAN

10/100/1000 Ethernet

WI-FI

802.11b/g/n

OS

Android 5.1.1
Windows® 8 /8.1 64-bit, Windows® 10 64-bit,
Windows 10 IoT Enterprise 64bit (licence purchased separately)

OTHER

No accessible buttons or controls

Accessories

INCLUDED

Remote Control, User Manual, Power Cable,
USB to USB Cable, Wi-Fi Aerial

OPTIONAL

Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand

55 Inch – TAO55E3

DISPLAY AREA

1211×682

UNIT SIZE

1319.6x1320x660.2

POWER CONSUMPTION (W)

85

NET WEIGHT

81.60kg

GROSS WEIGHT

95.60kg

PACKAGE SIZE

Box 1: 1003x678x435
Box 2: 1480x950x250

Panel/Mechanical

RESOLUTION

1920×1080

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

450

VIEWING ANGLE

178°

CONTRAST RATIO

5000:1

COLOUR

16.7M

FOOTPRINT

800×500

Touch

TOUCH TECHNOLOGY

Projected Capacitive

TOUCH POINTS

10

GLASS HARDNESS

7H minimum

AV Inputs/Audio

INPUTS (WHEN USED AS MONITOR)

HDMI, VGA, RS-232

AUDIO INPUT (WHEN USED AS MONITOR)

Audio Socket (3.5mm)

AUDIO OUTPUT (INTERNAL PC)

Audio Socket (3.5mm)

SPEAKER TYPE

2W, 5Ω (x2)

Power

INPUT VOLTAGE

AC110~240V (50Hz~60Hz)

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Computer

CPU

Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)

RAM

4GB (DDR3L-RS 1600MHz)

INSTRUCTION SET

64-bit

GRAPHIC ENGINE

Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)

HARD DRIVE/INTERNAL MEMORY (EMMC)

64GB

USB

2 x USB 2.0

LAN

10/100/1000 Ethernet

WI-FI

802.11b/g/n

OS

Android 5.1.1
Windows® 8 /8.1 64-bit, Windows® 10 64-bit,
Windows 10 IoT Enterprise 64bit (licence purchased separately)

OTHER

No accessible buttons or controls

Accessories

INCLUDED

Remote Control, User Manual, Power Cable,
USB to USB Cable, Wi-Fi Aerial

OPTIONAL

Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
