Mirror PCAP Touch Screens with Dual OS

Mirror Finish

Mirror Finish

pcap touch

PCAP Touch

Integrated Dual Android Windows OS

Dual OS

Multiple AV Inputs

Multiple AV Inputs

Commercial grade IPS Panel

Commercial Grade IPS panel

Portrait or Landscape Orientation

Landscape/Portrait Orientation

Ten Touch Points

10 Touch Points

Wide Viewing Angle

Wide Viewing Angle

24/7 Usage

24/7 Usage

Wireless Wi-Fi connection

Integrated WI-Fi

Integrated Speakers

Integrated Speakers

LED Backlight

LED Backlight

Lifetime Technical Support

Lifetime Technical Support

Three Year Warranty

3 Years Warranty

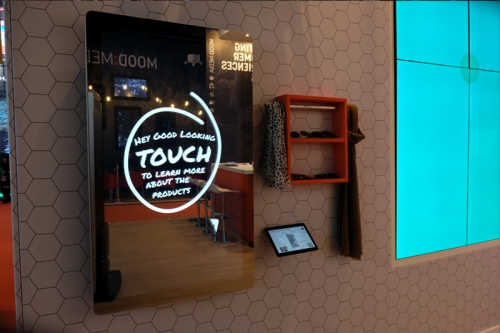

interactive touch mirror

Interactive Mirror

Add some magic to your Touch Screen with our Mirror PCAP Touch Screens. The stunning display is sure to create an impression on users as they interact with the mirror! Suitable for a wide range of applications such as fitting rooms, retail stores, gyms and hotels; the list of possibilities is endless with such a unique display like this. With a brightness of 450cd/m2 the screen is perfectly calibrated so content in white shines bright for users and areas left in black are reflective.

integrated dual os android windows

Dual OS

Experience the most versatile commercial touch screen on the market. With both Android and Windows operating systems installed on the integrated PC it cannot be beaten on flexibility. Easily switch from Windows to Android; this screen has it all in one convenient package. A Windows license will need to be purchased separately.

pcap touch technology touch screen

PCAP Touch

State of the art Projected Capacitive interactive technology offers the most responsive and sensitive touch experience available. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface, allows for up to 10 touch points and offers superior optical quality.

ten touch points digital signage screen

10 Point Touch

Having up to 10 touch points allows for a wider variety of applications than ever before. This kind of functionality allows you to manipulate images, zoom in an out as well as perform many other touch gestures; much like you would with a domestic tablet. It also allows for multiple users interacting with the screen at one time.

ips panel commercial grade

IPS Panel

Accurately displays an image’s quality and colour depth at an 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for mounting in either landscape or portrait orientation.

led backlight digital signage screen

LED Backlight

The LED backlight used is not only eco-friendly but also ensures the display has enhanced brightness and contrast. This technology increases the lifespan and reduces the power consumption by around 30%. This form of light technology is mercury free; safeguarding this screen’s eco friendliness.

digital signage product 24/7 usage

24/7 Usage

Built with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets. The panel also has a lifespan of over 70,000 hours of continuous use. They can also be used in landscape or portrait orientation.

Multiple AV Inputs

Attach External Devices

Although the screens have an integrated PC with two operating systems, there is also a possibility to attach external devices if required. Simply connect your device to the screen, via VGA or HDMI (for the video signal) and USB (for the touch functionality). The screen will then serve as your computer monitor and the touch functionality controls the cursor, essentially acting as your mouse.

Touch CMS

Touch CMS

The PCAP Touch Screen can be used as a touch monitor if you connect your own PC or you can run your own touch software from the integrated Dual OS PC board with Windows and Android. However you can use our ground breaking new Touch Cloud Management System that puts you in control as you create, deploy and touch your very own content on screen. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Now all that is left to do is touch as you let your content do the talking about your brand, company, service or product.

pcap touch screen attach devices

SPECIFICATION

50 Inch – MAO50E3

DISPLAY AREA

1076×606

UNIT SIZE

1186.6×716.6×65

PACKAGE SIZE

1350x865x270

VESA HOLES

400×200

POWER CONSUMPTION (W)

75

NET WEIGHT

30.6kg

GROSS WEIGHT

36.65kg

Panel

RESOLUTION

1920×1080

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

450

VIEWING ANGLE

178°

CONTRAST RATIO

5000:1

COLOUR

16.7M

Touch

TOUCH TECHNOLOGY

Projected Capacitive

TOUCH POINTS

10

GLASS HARDNESS

7H minimum

AV Inputs/Audio

INPUTS (WHEN USED AS MONITOR)

HDMI, VGA, RS-232

AUDIO INPUT (WHEN USED AS MONITOR)

Audio Socket (3.5mm)

AUDIO OUTPUT (INTERNAL PC)

Audio Socket (3.5mm)

SPEAKER TYPE

2W, 5Ω (x2)

Power

INPUT VOLTAGE

AC110~240V (50Hz~60Hz)

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Computer

CPU

Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)

RAM

4GB (DDR3L-RS 1600MHz)

INSTRUCTION SET

64-bit

GRAPHIC ENGINE

Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)

HARD DRIVE/INTERNAL MEMORY (EMMC)

64GB

USB

2 x USB 2.0

LAN

10/100/1000 Ethernet

WI-FI

802.11b/g/n

OS

Android 5.1.1
Windows® 8 /8.1 64-bit, Windows® 10 64-bit,
Windows 10 IoT Enterprise 64bit (licence purchased separately)

OTHER

No accessible buttons or controls

Accessories

INCLUDED

Remote Control, User Manual, Power Cable,
USB to USB Cable, Wi-Fi Aerial

OPTIONAL

Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
