Android Network Freestanding Digital Posters

Wireless Wi-Fi connection

Wireless WiFi

Network product

Cloud Based Software

LAN Connection

LAN Connection

Multiple AV Inputs

Multiple AV Inputs

Scrolling Text Zone RSS Zone

Scrolling Text/RSS Feed

Eco Friendly Power Timer

Eco-Friendly Power Timer

24/7 Usage

24/7 Usage

multiple media zones

Multiple Media Zones

Wide Viewing Angle

Wide Viewing Angle

Super Slim Profile

Super Slim Profile

Commercial grade IPS Panel

Commercial Grade IPS Panel

Lifetime Technical Support

Lifetime Technical Support

Integrated Castors

Free Integrated Castors

Three Year Warranty

3 Years Warranty

Queen’s Award Winning Solution
unique Screen

What Makes Us Unique?

Our screens have an integrated Android network media player; making installation a breeze. Typically network solutions require you to invest in additional networking hardware – complicating the installation process and the overall system. Hardware and software usually come from different sources which can result in confusion and conflict when identifying any potential faults. In contrast to this, any issues with our screens or Digital Signage software will be dealt with directly by us; one supplier, one solution.

Integrated Android Media Player

Android Media Player

Their integrated Android network media player provides a super fast processing speed allowing for improved communication with the CMS. This means that you can update your screens quicker than ever before. It also allows you to display a live website; this can be anything from a live URL feed provided by a third party to your social media profile. The Android network media player also allows you to run your own software should you already have a CMS solution.

Network Product

Cloud-based Content Management System (CMS)

multiple connections

Connectivity

Connect your Wall-Mounted Slimline Network Screens to the internet wirelessly via Wi-Fi or via a Local Area Connection. If an internet connection is not available a 3G router can be incorporated into the screen, meaning that we can provide an integrated network solution for any location.

custom layouts

Create Custom layouts

This feature allows you to design your own layout with different media zones for your images, videos, webpages, time, date and also allows you to add a scrolling message or RSS feed. You can even give your layout a corporate “skin” to go around your media zones.

Scheduling Software

Schedule Playlists

Display what you like, when you like. Create playlists that will automatically display your desired content a pre-determined times and dates. Whatever your scheduling requirements, our system can support them.

Multiple Users

Manage Users and Review Logs

You may wish to limit some functions of the software or zones of the screens to specific users. For example you may wish to allow a receptionist to have access to the screen in the reception area but nothing else – our system allows full user rights control.

Records are kept from all screen and user activity so as you can monitor the usage and effectiveness of your content.

Remote Screen Functions

Remote Screen Functions

You can now access functions of your screens via the CMS, such as setting On/Off times for each of your screens and adjusting display settings like Brightness, Contrast and Colour; a truly centralised solution.

Remote Screen Functions

Supported Files and Formats

Networked Screens can support a wider range of files and formats than the standalone solution. From standard file formats such as images (JPG, GIF, BMP, PNG), video (MPG, AVI, MP4, RM, RMVB, TS) and audio (MP3, WMA) you can now display Office Document files. Your Word, Excel and PowerPoint files can now be directly sent to your advertising display alongside PDF’s. RSS feeds are also available in the form a scrolling text ticker on screen. Websites with HTML5 can also be shown on your display, great for displaying dynamic online content or even social media feeds.

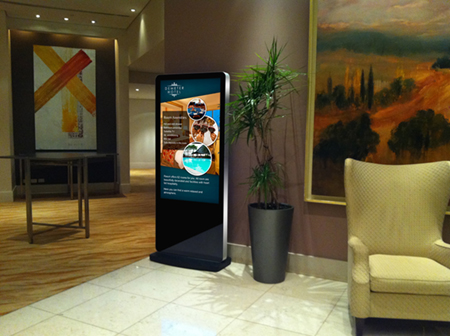

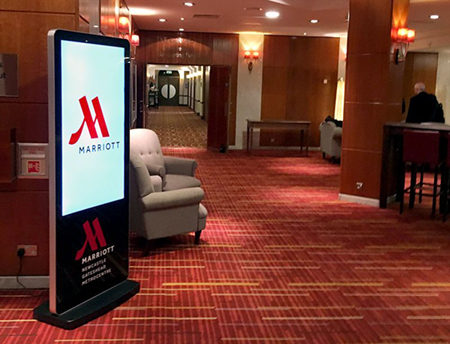

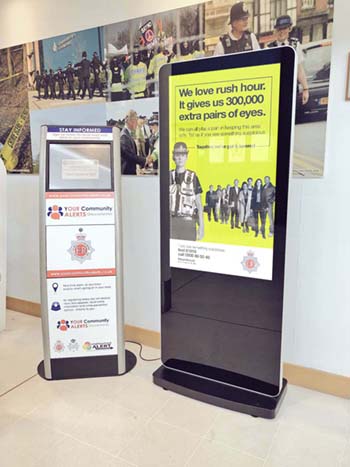

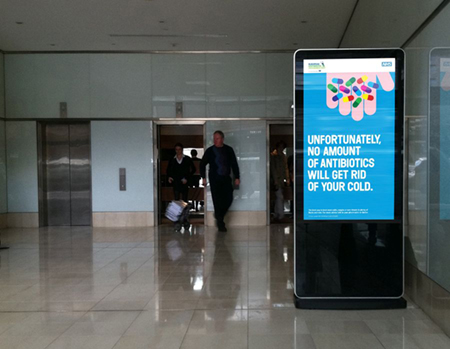

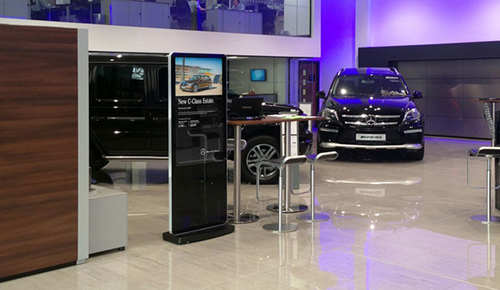

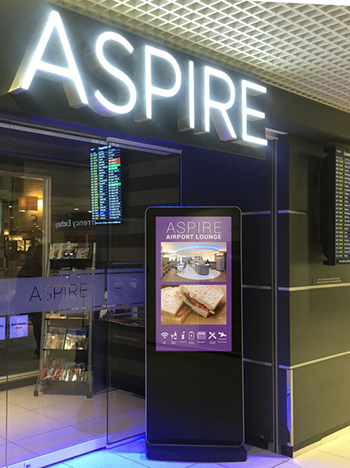

public spaces

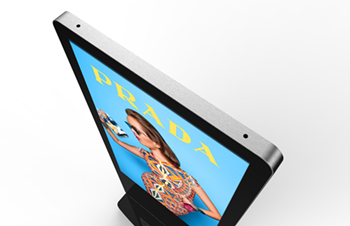

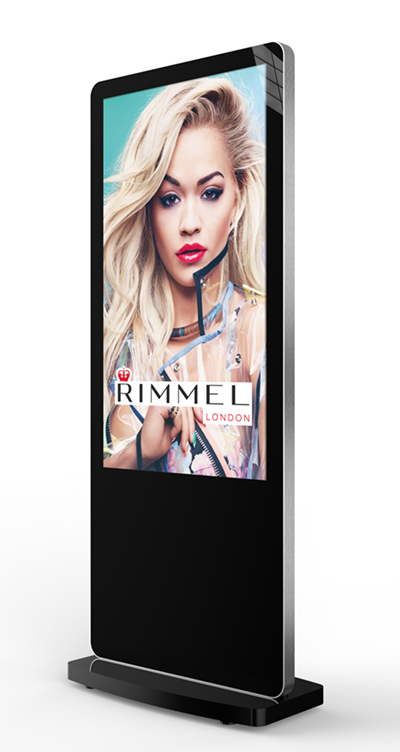

Tablet-like Styling

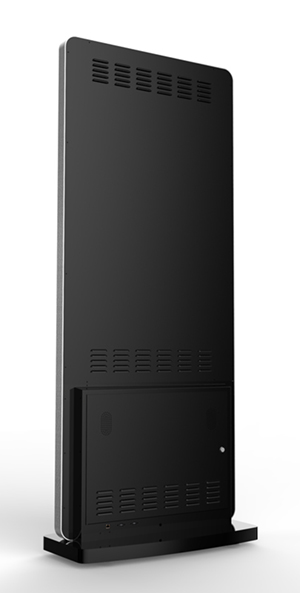

These are the most stylish and attractive commercial grade screens on the market. They are designed to be in constant use 24/7 for over 70,000 hours. Their buttonless tempered glass face, rounded corners, steel enclosure with super slim profile and aluminium surround all add to their eye-catching tablet-like aesthetics.

LED backlight technology means they use substantially less energy as well as increasing their lifespan. It also provides a sharper image, increased brightness, a more vibrant contrast ratio and allows for a slimline profile.

IPS Panel

IPS Panel

As well as having a brightness of 450cd/m², much brighter than a domestic TV, the commercial IPS panels accurately display an image’s quality and colour depth at a 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for portrait orientation.

Integrated Castors

Free Integrated Castors

Our Freestanding Digital Posters are a fully portable solution and come with discreet integrated castors, which are also retractable. Easily manoeuvre the display into position then if you prefer you can retract the wheels and use the feet to make sure it stays put.

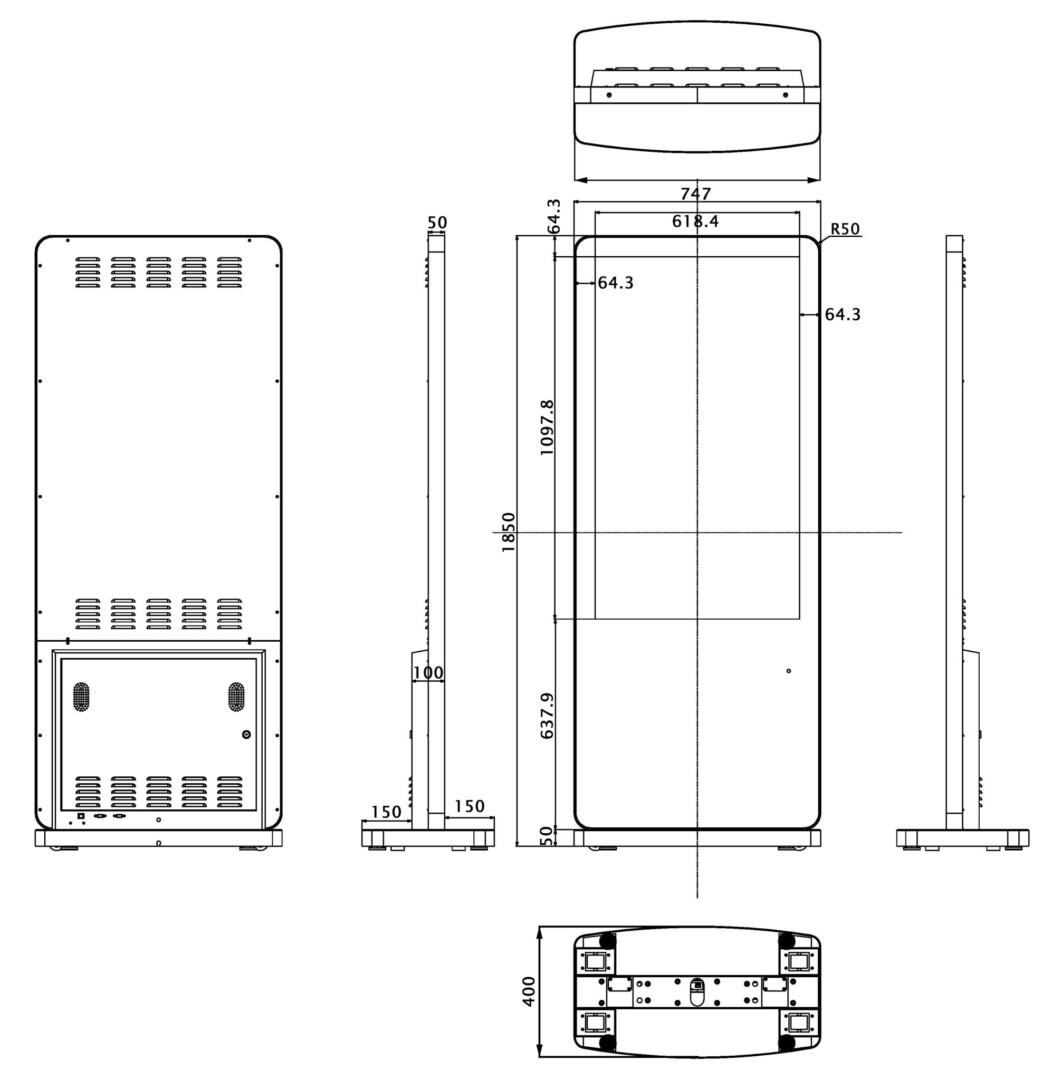

SPECIFICATION

50 Inch – PF50HD6

DISPLAY AREA

1075.6×605.4

UNIT SIZE

1199x736x44

PACKAGE SIZE

1357x867x176

VESA HOLES

400×400

NET WEIGHT

28.05kg

GROSS WEIGHT

37kg

POWER CONSUMPTION (W)

75

SPEAKER TYPE

5W, 8Ω (x2)

Panel

RESOLUTION

1920×1080

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

450

COLOUR

16.7M

VIEWING ANGLE

178°

CONTRAST RATIO

5000:1

AV Inputs

VIDEO

HDMI, VGA

AUDIO

Audio Socket (3.5mm)

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Computer

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

MEDIA RESOLUTION

1920×1080/1080×1920

INTERNAL MEMORY

6GB

CPU

Duel-Core Cortex-A9 @1.6GHz

GPU

Mali-400 MP4 @400MHz

RAM

1GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

WI-FI

802.11b/g/n (Network version screen only)

OS

Android 4.2.2

GRAPHIC ENGINE

OpenGL ES 1.1/2.0, OpenVG 1.1

Accessories

INCLUDED

Wall Mount, Scheduling Software, Remote Control, Key, User Manual

OPTIONAL

Network Upgrade, Touch Screen Upgrade, Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand

55 Inch – PF55HD6

DISPLAY AREA

1211×682

UNIT SIZE

1366x837x50.1

PACKAGE SIZE

1525x1016x214

VESA HOLES

400×400

NET WEIGHT

39.7kg

GROSS WEIGHT

49.7kg

POWER CONSUMPTION (W)

85

SPEAKER TYPE

5W, 8Ω (x2)

Panel

RESOLUTION

1920×1080

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

450

COLOUR

16.7M

VIEWING ANGLE

178°

CONTRAST RATIO

5000:1

AV Inputs

VIDEO

HDMI, VGA

AUDIO

Audio Socket (3.5mm)

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Computer

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

MEDIA RESOLUTION

1920×1080/1080×1920

INTERNAL MEMORY

6GB

CPU

Duel-Core Cortex-A9 @1.6GHz

GPU

Mali-400 MP4 @400MHz

RAM

1GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

WI-FI

802.11b/g/n (Network version screen only)

OS

Android 4.2.2

GRAPHIC ENGINE

OpenGL ES 1.1/2.0, OpenVG 1.1

Accessories

INCLUDED

Wall Mount, Scheduling Software, Remote Control, Key, User Manual

OPTIONAL

Network Upgrade, Touch Screen Upgrade, Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
