Super-Slim Dual Sided Display for Windows with Integrated Ceiling Mounting Solution
HANGING DOUBLE-SIDED WINDOW DISPLAYS
(43″ & 55″) Other sizes available on request
We install nationwide in Ireland – Call us for a quote (044) 9672855
Double Sided Display
Sunlight Readable Display
24/7 Usage
Plug and Play
Eco-Friendly Power Timer
Wide Viewing Angle
Integrated Ceiling Mount
Ultra Resistant Blackening 110˚C
IPS Panel
Temperature Control System
Full High Definition 1080p
Optional Network Upgrade
Lifetime Technical Support
3 Years Warranty

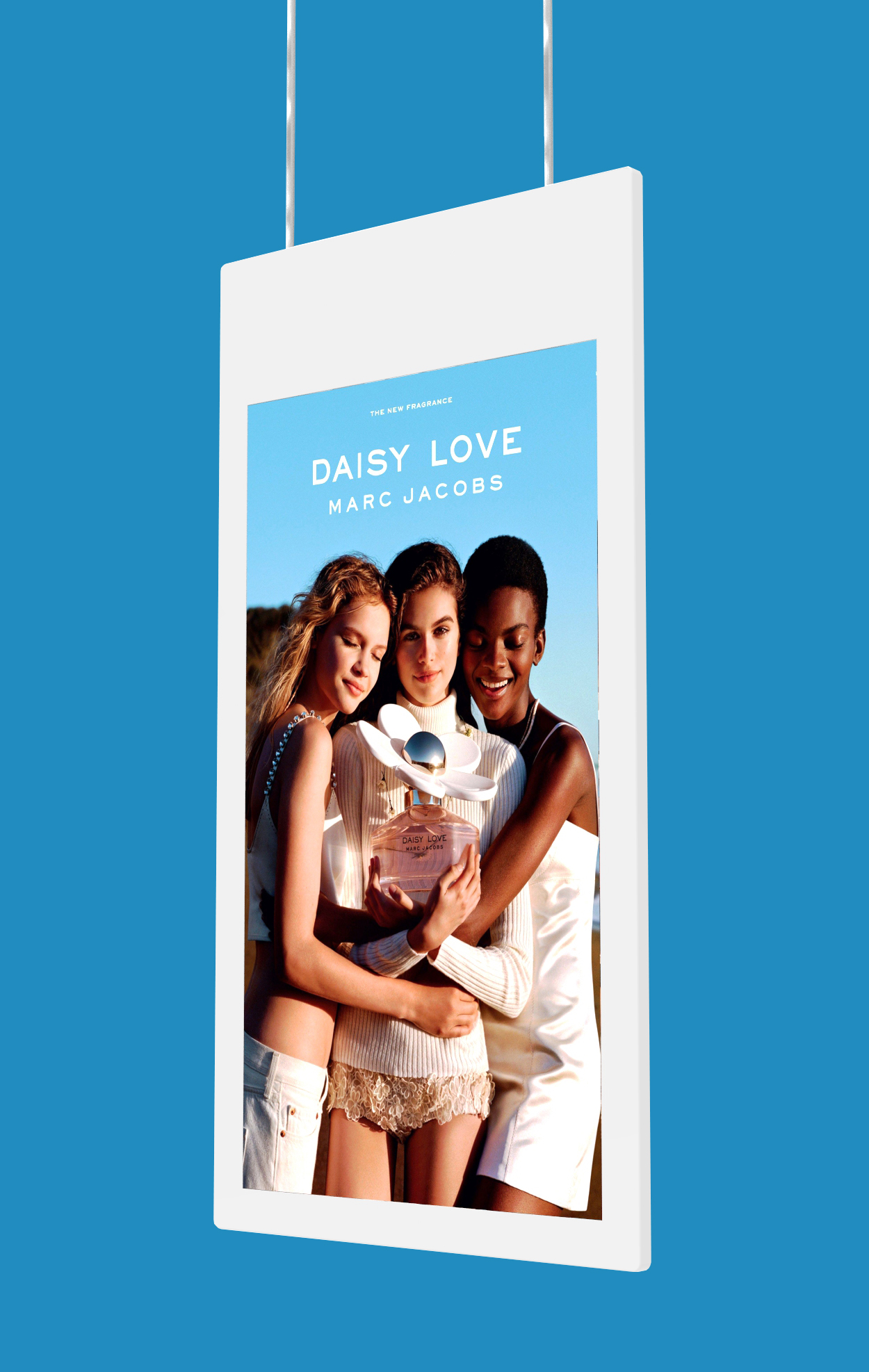

Double Sided Window Display
Grab the attention of onlookers with the outward facing, sunlight readable screen. Once your customers are inside the building you can then use the inward facing display to reinforce your message further. Ideal for the Irish weather and climate. Call 0449672855
Window Displays (700cd/m²)
Brightness is paramount when using outward facing screens, these displays use commercial grade high brightness panels (700cd/m²); more than twice the brightness of a standard home TV to allow easy readability in window displays.
Plug and Play
The Double Sided Hanging Displays come with a built in HD Android media player, allowing you to update them using a USB memory stick. Load your pictures and videos onto a USB memory stick then insert it into the display, which will copy the files into its internal flash memory. Once you remove the memory stick the screen will then start playing the pictures and videos in a continuous loop.
Optional Network Upgrade
For a small charge you can also upgrade your screen to be networked, allowing you to remotely update your screen via LAN, WiFi or 4G. To find out more about our Digital Signage CMS CLICK HERE.

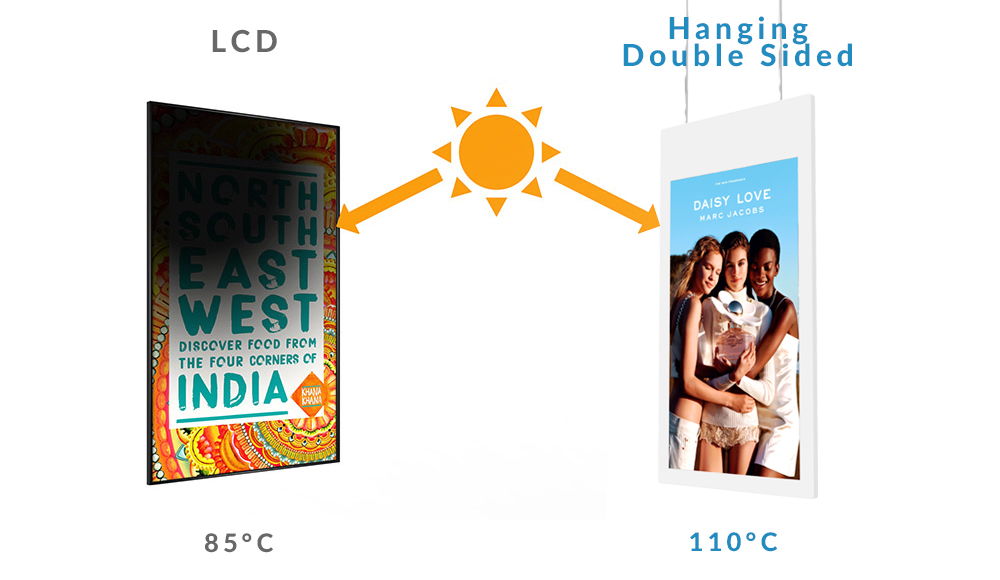

Ultra Resistant to Blackening
When dealing with direct sunlight most LCD panels will overheat and the blackening on the panel will occur, we use a special ultra-high brightness panel that can withstand surface temperatures up to 110˚C with no blackening defect occurring making this the number one choice for Digital Signage in window displays.
Integrated Ceiling Mount
The screen comes with an integrated wire hanging mounting solution so no additional ceiling mount is required. You can even hide unsightly power and data cables in the cover tubes provided.
Super Slim Design
Even though these displays feature two separate screens they have a profile thinner than most single-sided displays. They have a remarkable depth of just 23mm, allowing for stylish and modern window displays.
Commercial Grade Panel and Components
Fitted with a commercial grade panel, with a lifespan of 70,000 hours, and using high quality components ensures that the high brightness monitor displays can be in constant use 24/7.
Built-in Speakers
The Hanging Double-Sided Window Displays displays have two integrated slimline speakers for applications that involve an audio element.
Power Timer
The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.
[fusion_builder_container background_color=”” background_image=”” background_parallax=”up” enable_mobile=”no” parallax_speed=”0.3″ background_repeat=”no-repeat” background_position=”left top” video_url=”” video_aspect_ratio=”16:9″ video_webm=”” video_mp4=”” video_ogv=”” video_preview_image=”” overlay_color=”” overlay_opacity=”0.5″ video_mute=”yes” video_loop=”yes” fade=”no” border_size=”0px” border_color=”” border_style=”solid” padding_top=”0″ padding_bottom=”0″ padding_left=”0″ padding_right=”0″ hundred_percent=”yes” equal_height_columns=”no” hide_on_mobile=”no” menu_anchor=”” id=””][fusion_builder_row][fusion_builder_column type=”1_1″ last=”yes” spacing=”no” center_content=”yes” hide_on_mobile=”no” background_color=”#a1a1a1″ background_image=”” background_repeat=”no-repeat” background_position=”left top” hover_type=”none” link=”” border_position=”all” border_size=”0px” border_color=”” border_style=”solid” padding=”10px” margin_top=”0″ margin_bottom=”0″ animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ animation_offset=”” id=””][fusion_text]
SPECIFICATION
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_1″ background_position=”left top” background_color=”” border_size=”” border_color=”” border_style=”solid” spacing=”yes” background_image=”” background_repeat=”no-repeat” padding=”” margin_top=”0px” margin_bottom=”0px” class=”” id=”” animation_type=”” animation_speed=”0.3″ animation_direction=”left” hide_on_mobile=”no” center_content=”no” min_height=”none”][fusion_tabs design=”classic” layout=”horizontal” justified=”yes” backgroundcolor=”” inactivecolor=”” bordercolor=”” id=””][fusion_tab title=”Full Specification – PPCNET-Live” icon=””]
Full Specification
43 Inch
55 Inch
43 Inch
Display Area
943×536
Unit Size (WxHxD mm)
1180x635x23
Package Size (WxHxD mm)
1280x760x160
Net Weight (kg)
16.9
Gross Weight (kg)
22.5
Power Consumption (w)
150
55 Inch
Display Area
1209.6×680.4
Unit Size (WxHxD mm)
1573x828x23
Package Size (WxHxD mm)
1705x960x150
Net Weight (kg)
26.1
Gross Weight (kg)
34.4
Power Consumption (w)
220
65 Inch – UHB65B
Display Area
1429×804
Unit Size
1491x866x123.5
VESA Holes
600×400
Net Weight
56.1kg
Gross Weight
67.45kg
Power Consumption (w)
490
Contrast Ratio
4000:1
Panel
Resolution
1920×1080
Aspect Ratio
16:9
Side A Brightness (cd/m2)
700
Side b Brightness (cd/m2)
450
Viewing Angle
178°
Contrast Ratio
1200:1
Colour
16.7M
Blackening Defect Free
Up to 110°C (230°F)
AV Inputs
Video Inputs
HDMI, VGA
Audio
Audio Socket (3.5mm)
Speaker Type
2W, 5Ω (x2)
Environmental
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Operating Humidity
10% to 90%
Storage Humidity
0% to 95%
Computer
Media Formats
Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
Media Resolution
1920×1080/1080×1920
Internal Memory
6GB
CPU
Quad-Core Cortex-A17@1.61GHz
GPU
Mali-T760 MP4 @600MHz
RAM
2GB DDR3
ROM
8GB NAND
USB
USB2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11b/g/n (Network version screen only)
OS
Android 5.1.1
Graphic Engine
OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Accessories
Included
Installation Kit, Scheduling Software, Remote Control, User Manual
Optional
Network Upgrade
