Network Point of Sale Touch Screen

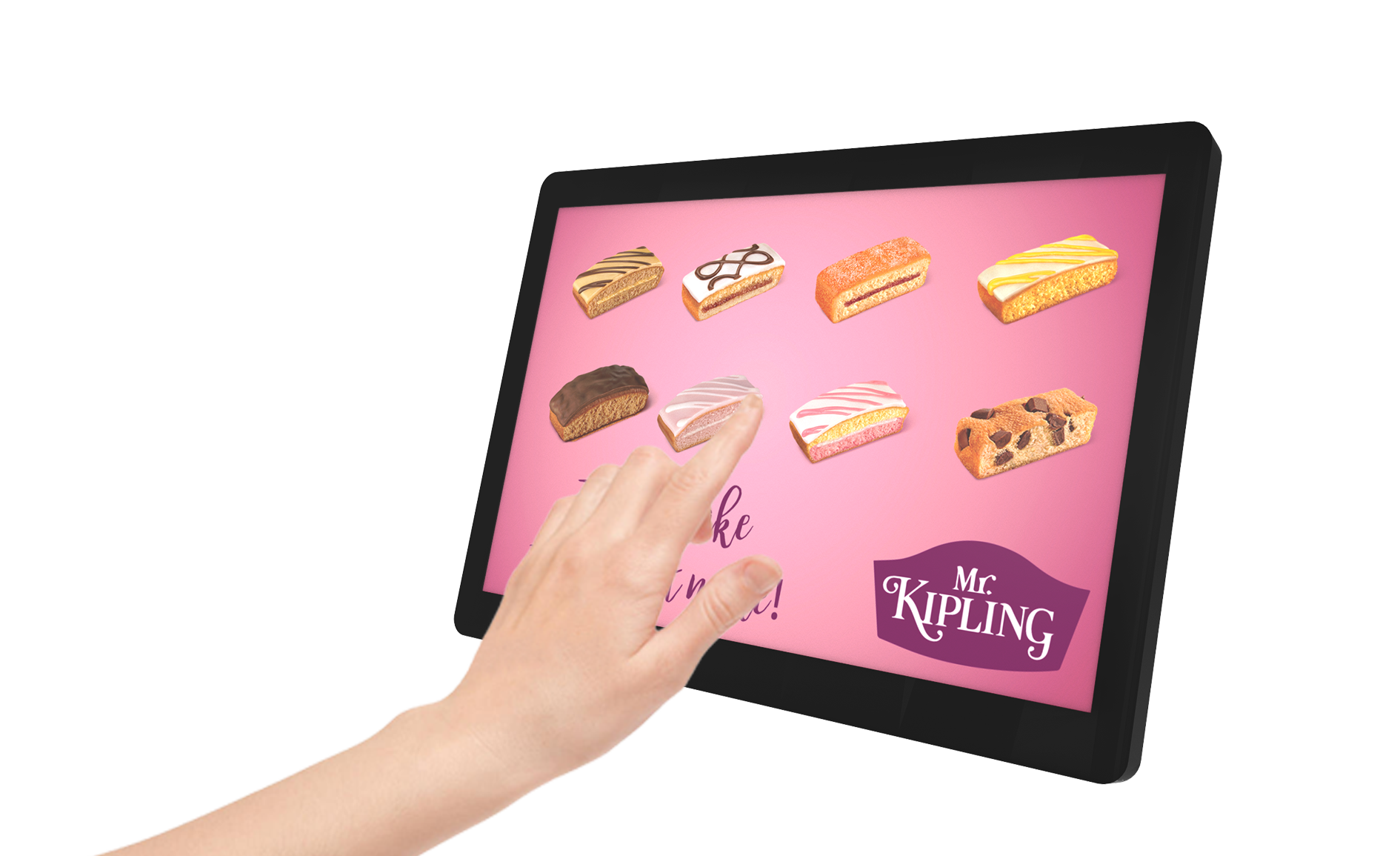

15” POS Android PCAP Touch Screen

PCAP touch Screens
PCAP Touch Screen
Portrait or Landscape Orientation
Landscape or Portrait
commercial grade display
Commercial Grade Tablet
Wide Viewing Angle
Wide Viewing Angle
24/7 Usage
24/7 Usage
Ten Touch Points
10 Touch Points

Super Slim Profile
Super Slim Profile
Integrated Speakers
Integrated Speakers
High Definition
High Definition Display
Eco Friendly Power Timer
Eco-Friendly Power Timer
Three Year Warranty
3 Years Warranty
pcap touch screens
PCAP Touch Screen
State of the art Projected Capacitive interactive technology offers the most responsive and sensitive touch experience available. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface, allows for up to 10 touch points and offers superior optical quality.
Ten Touch Points
10 Point Touch
Having up to 10 touch points allows for a wider variety of applications than ever before. This kind of functionality allows you to manipulate images, zoom in an out as well as perform many other touch gestures; much like you would with a domestic tablet. It also allows for multiple users interacting with the screen at one time.
POS Android PCAP Touch Screen

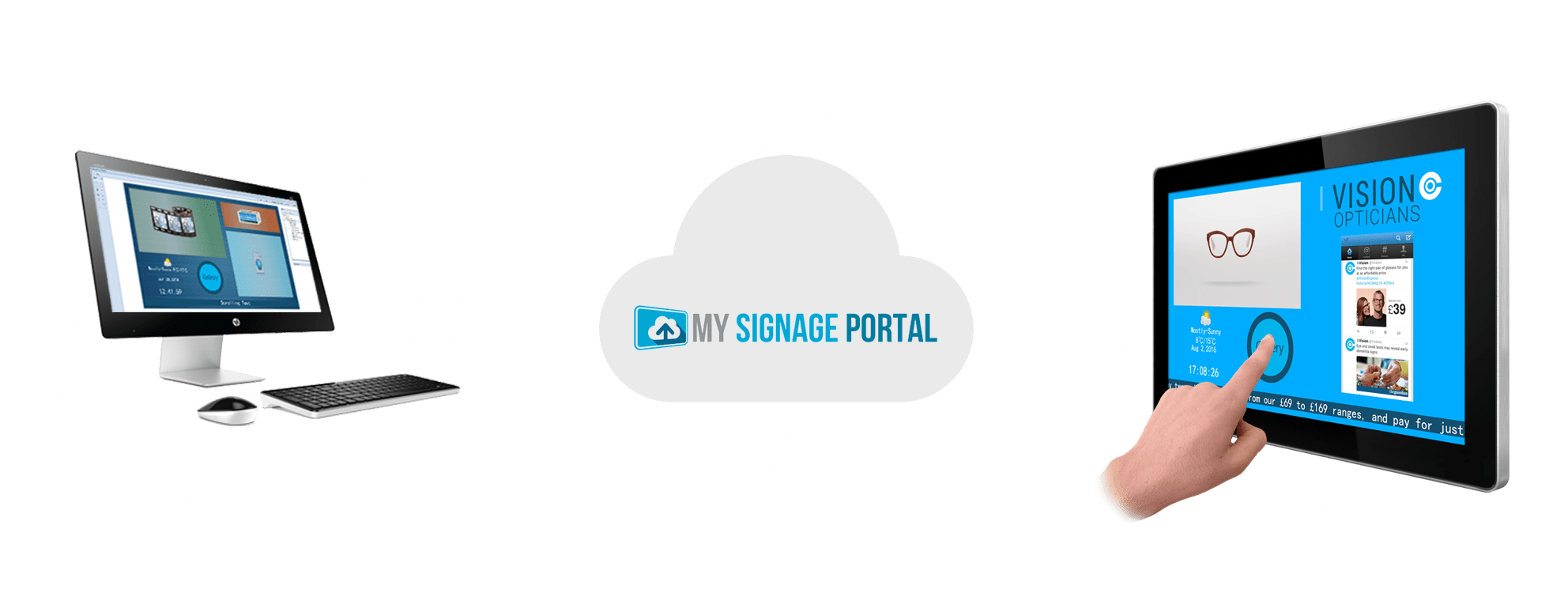

Touch CMS
touch cms
You can run your own touch software from the integrated PC board with Android or take advantage of our user friendly Touch Cloud Management System that puts you in control as you create, deploy and touch your very own content on screen. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Now all that is left to do is touch as you let your content do the talking about your brand, company, service or product.
24/7 Usage
24/7 Usage
Built with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets which use internal batteries. The panel also has a lifespan of over 70,000 hours of continuous use. They can also be installed in landscape or portrait orientation.
Integrated Android Media Player
Android Media Player
Their integrated Android network media player provides super-fast processing speed for improved communication with the CMS. It also allows you to display live websites; this can be anything from a live web feed from a third party to your social media page. Should you need to you can also run your own software if you already have a CMS solution.
vesa holes
VESA Mounting Holes
Unlike domestic tablets these displays have an integrated and secure screw based mounting solution on the rear. This makes mounting and installing easy for any application, whether you are mounting your screen to a wall or stand.

SPECIFICATION

Full Specification
15 Inch-POS15W3-T

Display Area

343.6×192.8

Unit Size

403.8×252.8×32

Package Size

430x359x68

VESA Holes

75×75

Speaker Type

2W, 8Ω x2
Panel

Resolution

1366×768

Aspect Ratio

16:10

Brightness (cd/m2)

450

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

800:1
Touch

Touch Technology

Projected Capacitive

Touch Points

10
Power

Power Consumption (W)

20

Input Voltage

AC110~240V (50Hz~60Hz)
Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%
Internal Media Player

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920×1080/1080×1920

CPU

Quad Core ARM Cortex A17@1.8GHz And Quad Mali –T764

GPU

ARM Mali-400MP2

RAM

2GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x1)

LAN

10/100M Ethernet

Wi-Fi

802.11b/g/n

OS

Android 5.1.1

Graphic Engine

OpenGL ES2.0 and OpenVG 1.1
Gallery

QUEEN’S AWARD FOR ENTERPRISE: INNOVATION

Our all-in-one network Digital Signage solutions earned us a Queen’s Award for Enterprise in the category of Innovation. This user friendly system is available across the majority of our core product ranges.

INTERNATIONAL TRADE COUNCIL: QUALITY IN BUSINESS

The Quality in Business certification is an independent, third-party evaluation program. It is a global business accreditation which highlights commitment to innovation, continuous improvement and adherence to global best business practices.

AVIXA MEMBER

AVIXA is the Audio Visual and Integrated Experience Association, co-owner of Integrated Systems Europe, and the international trade association representing the audio visual industry. AVIXA members create integrated AV experiences that deliver outcomes.

3 YEAR COMMERCIAL WARRANTY

All of our products come with a full 3 year commercial warranty as well as lifetime technical support. Our products are commercially graded and designed to run 24/7 in public spaces.

24/7 Usage

Built with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets which use internal batteries. The panel also has a lifespan of over 70,000 hours of continuous use. They can also be installed in landscape or portrait orientation.
