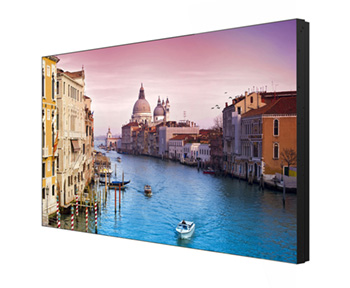

49″ & 55″ LCD Video Wall Displays

narrow bezel

Narrow Bezel

Automatic Tiling

Automatic Tiling

Multiple AV Inputs

Multiple AV Inputs

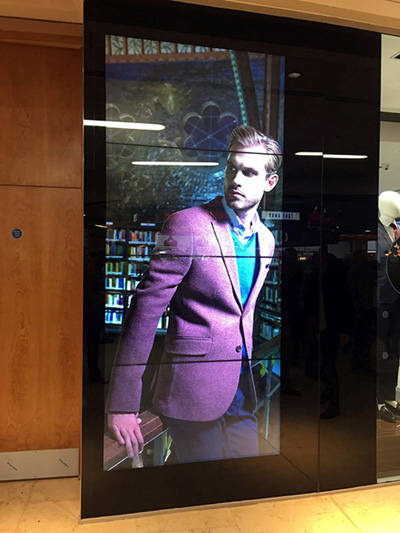

Portrait or Landscape Orientation

Portrait/Landscape Orientation

24/7 Usage

24/7 Usage

Wide Viewing Angle

Wide Viewing Angle

Commercial grade IPS Panel

IPS Commercial Grade Panel

Multiple Configurations

Multiple Configurations

Eco Friendly Power Timer

Eco-Friendly Power Timer

LED Backlight

LED Backlight

temperature control system

Smart Temperature Control System

High Definition

Full High Definition 1080p

Lifetime Technical Support

Lifetime Technical Support

Three Year Warranty

3 Years Warranty

narrow bezel

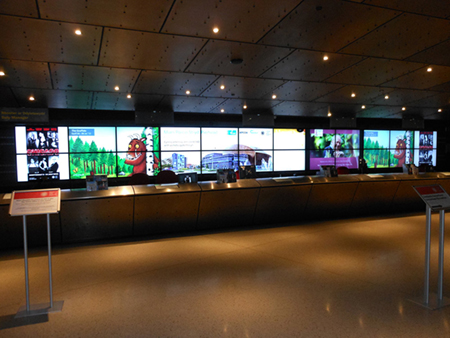

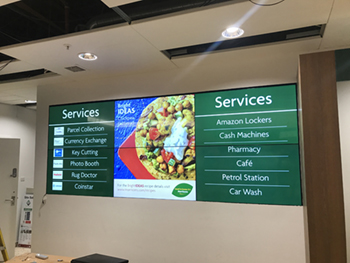

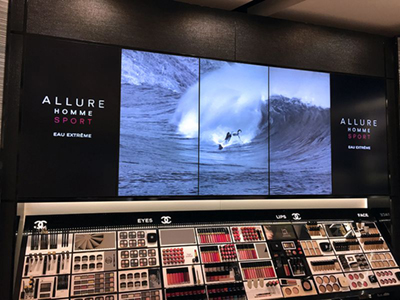

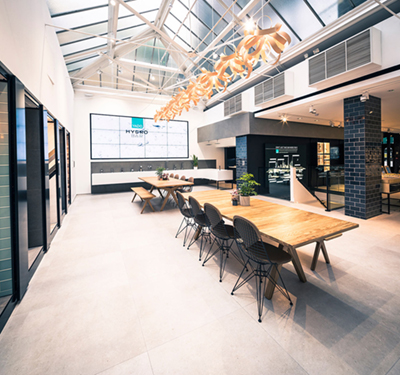

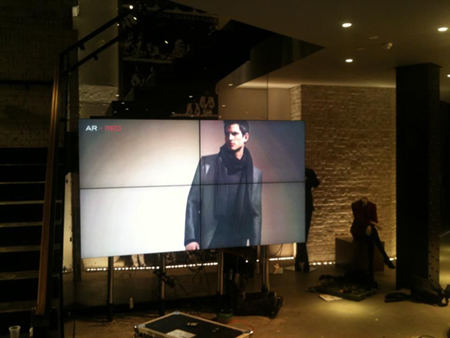

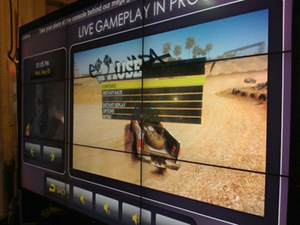

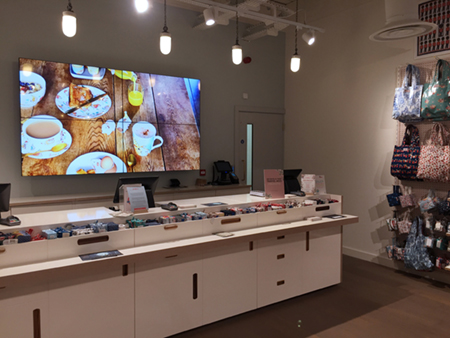

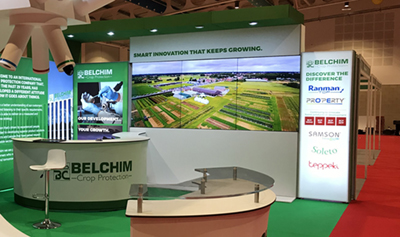

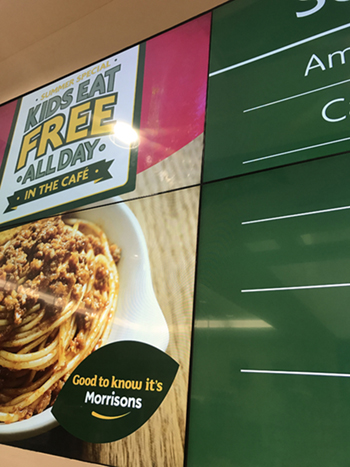

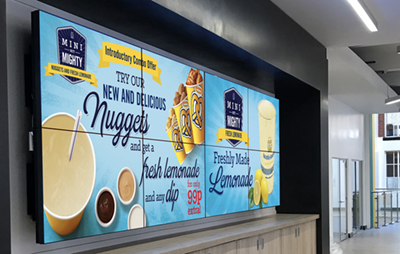

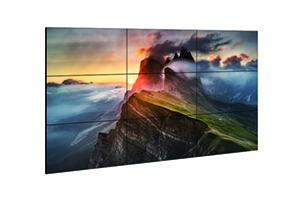

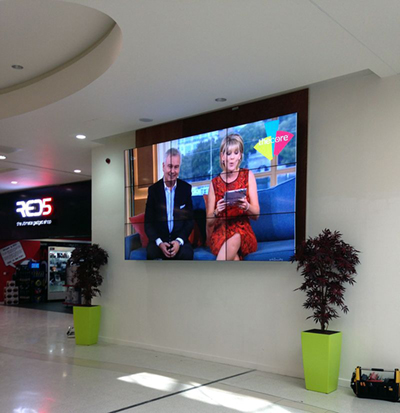

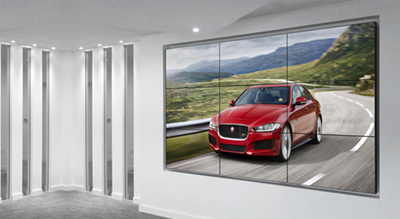

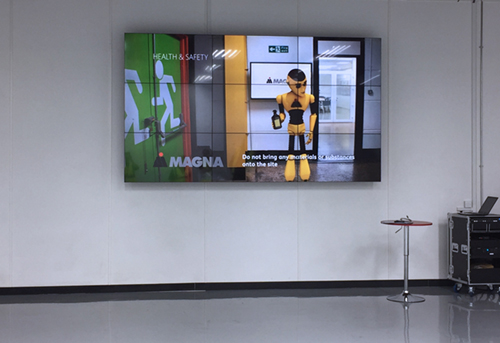

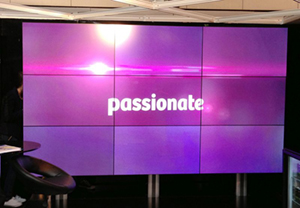

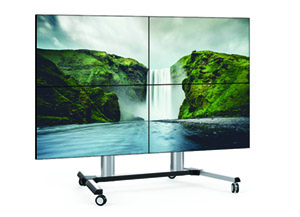

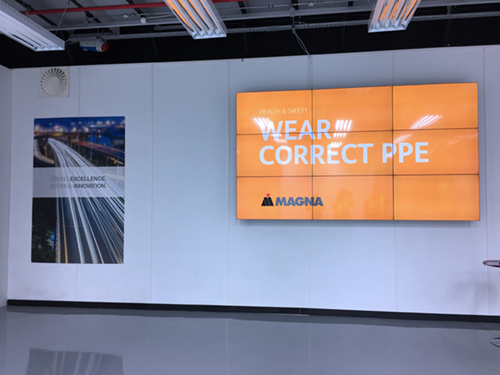

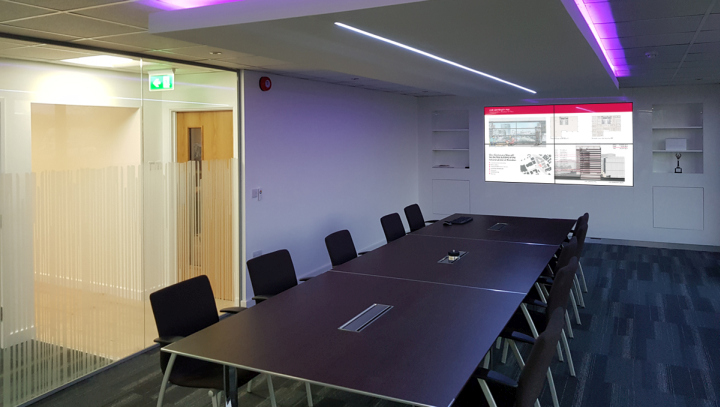

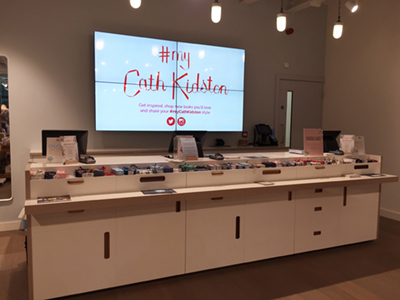

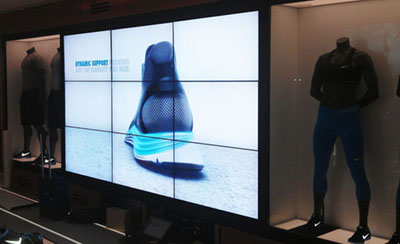

Seamless Video Wall

With a total bezel size of 3.5mm these displays are ideal as part of a virtually seamless LCD Video Wall – providing you with an eye catching, and content focused display. Their super narrow bezel allows you to build video walls of any size.

Embedded Video Matrix Processor

Embedded Video Matrix Processor

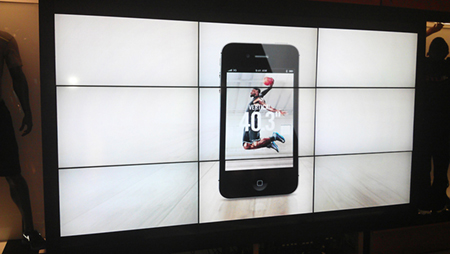

Our Video Wall Displays can be used independently or as part of a tiled video wall. If you require a video wall with hassle free setup then the units can tile the video signal automatically thanks to their built in video matrix processor. This means the video wall can have any configuration without any additional hardware.

commercial grade ips panel

IPS Commercial Grade Panel

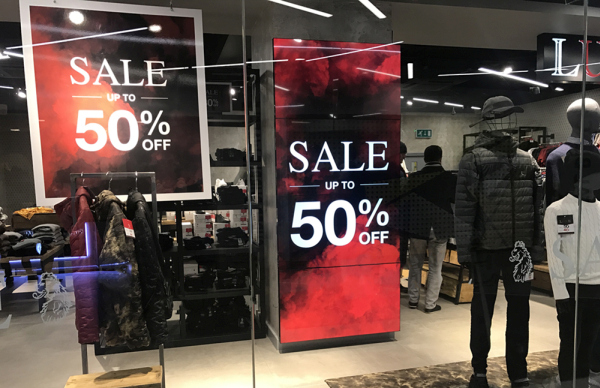

Superior colour uniformity, viewing angle and remarkable vibrancy – even when mounted in portrait. Also these panels do not suffer from blackening defect when used as a window display.

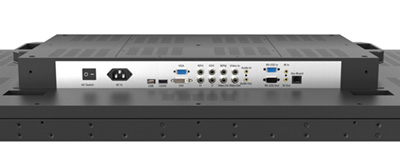

Multiple Inputs

Multiple Inputs

Powerful interface supporting a wide range of audio and video inputs, such as HDMI, VGA, DVI, RGB/HV, Composite Video, and YPbPr.

Eco Friendly Power Timer

Power Timer

The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.

LED Backlight

LED Backlight Technology

Thanks to their LED backlight these displays offer improved brightness and contrast as well as drastically improving their lifespan and reducing their power consumption. Unlike other forms of light this technology is mercury free; making it even more eco-friendly.

temperature control system

Smart Temperature Control System

The internal air-conditioning system allows the screens to be in constant use. A fanless cooling system keeps their panels and other internal components at the optimum working temperature; ensuring a long and reliable life for your screens.

Network Product

Optional Network Upgrade

For a small charge you can also upgrade your screen to be networked, allowing you to remotely update your screen via LAN, WiFi or 3G.

seamless video wall ultra narrow bezel

SPECIFICATION

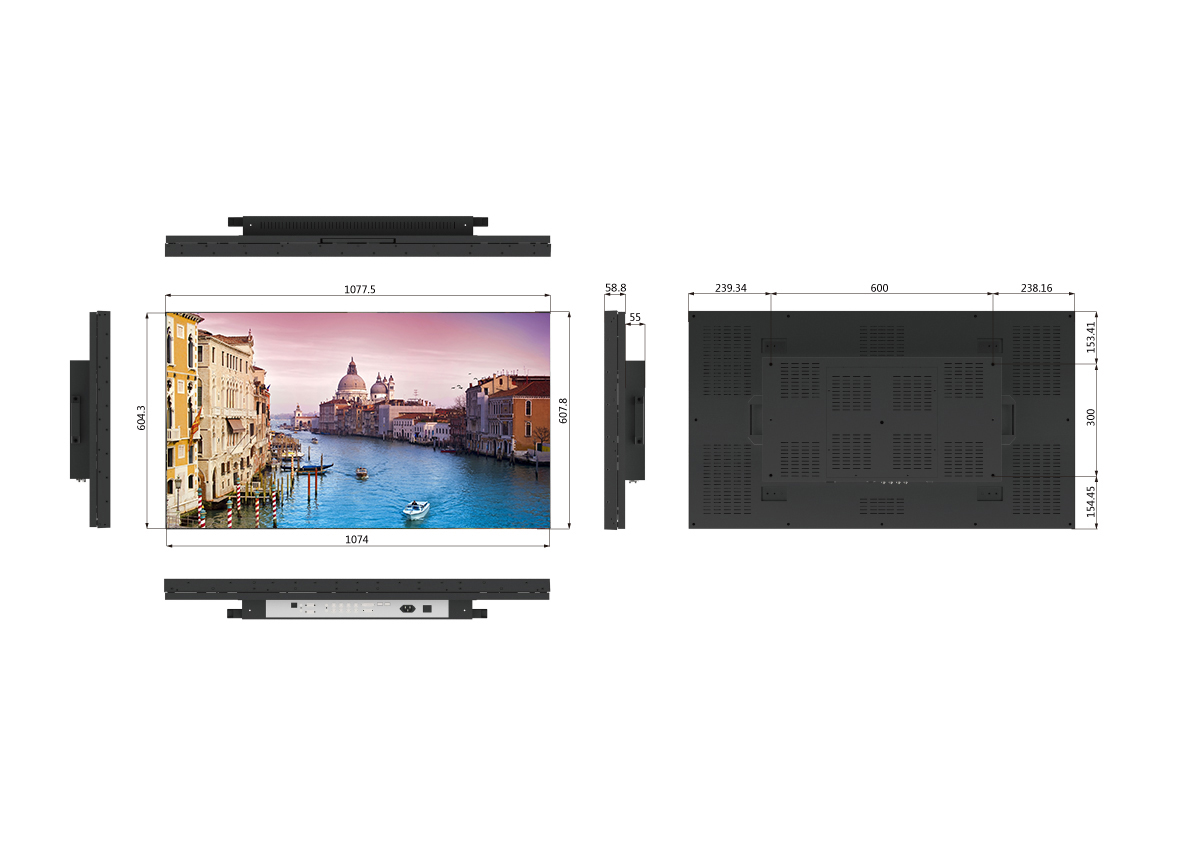

49 Inch – TL49H6

DISPLAY AREA

1074×600.8

BEZEL SIZE

Bottom/right: 2.34, Top/left: 1.16

UNIT SIZE

1077.5×604.3×113.8

PACKAGE SIZE

1258x858x285

VESA HOLES

600×300

NET WEIGHT

25kg

GROSS WEIGHT

31.5kg

POWER CONSUMPTION (W)

155

Panel

RESOLUTION

1920×1080

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

500

COLOUR

16.7M

VIEWING ANGLE

178°

CONTRAST RATIO

4000:1

BACKLIGHT LIFE

50,000 Hours

AV Inputs/Outputs

INPUTS

HDMI, DVI, VGA, RGB/HV (BNC), Video1 IN (BNC), Video2 IN (BNC), RS-232 In, IR In, Keyboard (IR), Audio in

OUTPUTS

RS-232 Out, IR Out, Audio out

Power

INPUT VOLTAGE

100V ~ 240V(50/60Hz)

POWER MANAGEMENT

VESA DPMS

Environmental

OPERATING TEMPERATURE

0°C to 50°C

OPERATING HUMIDITY

10% to 90%

WORKING PRESSURE

800-1114 hPa (Altitude:0-2,000m)

Accessories

INCLUDED

Remote control, AC Power Cable, User Manual, VGA/HDMI Cable, OSD Control Box

55 Inch – TL55H6

DISPLAY AREA

1209.9×680.7

BEZEL SIZE

Bottom/right: 1.2, Top/left: 2.3

UNIT SIZE

1213.4×684.2×117.9

PACKAGE SIZE

1390x916x303

VESA HOLES

600×300

NET WEIGHT

31.5kg

GROSS WEIGHT

40.6kg

POWER CONSUMPTION (W)

160

Panel

RESOLUTION

1920×1080

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

500

COLOUR

16.7M

VIEWING ANGLE

178°

CONTRAST RATIO

4000:1

BACKLIGHT LIFE

50,000 Hours

AV Inputs/Outputs

INPUTS

HDMI, DVI, VGA, RGB/HV (BNC), Video1 IN (BNC), Video2 IN (BNC), RS-232 In, IR In, Keyboard (IR), Audio in

OUTPUTS

RS-232 Out, IR Out, Audio out

Power

INPUT VOLTAGE

100V ~ 240V(50/60Hz)

POWER MANAGEMENT

VESA DPMS

Environmental

OPERATING TEMPERATURE

0°C to 50°C

OPERATING HUMIDITY

10% to 90%

WORKING PRESSURE

800-1114 hPa (Altitude:0-2,000m)

Accessories

INCLUDED

Remote control, AC Power Cable, User Manual, VGA/HDMI Cable, OSD Control Box
