Large Size Professional Monitors

24/7 Usage

24/7 Usage

Multiple AV Inputs

Multiple AV Inputs

High Definition

Full High Definition 1080p

Plug and Play

Plug and Play

LED Backlight

LED Backlight

Integrated Speakers

Integrated Speakers

RS-232 Control

RS-232 Control

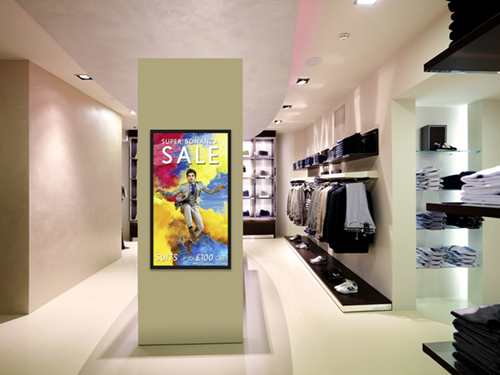

Portrait or Landscape Orientation

Landscape or Portrait

Eco Friendly Power Timer

Eco-Friendly Power Timer

temperature control system

Temperature Control System

Wide Viewing Angle

Wide Viewing Angle

Lifetime Technical Support

Lifetime Technical Support

Three Year Warranty

3 Years Warranty

commercial grade ips panel

IPS Panel

With 450cd/m² the IPS panel shines brighter than any domestic television while delivering superior image quality and colour depth at 178° ultra wide viewing angle in both landscape and portrait orientations.

24/7 usage

24/7 Usage – Commercial Grade

Built with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic screens and other professional monitors that are designed to run for 16 hours a day, 7 days a week. The panel also has a lifespan of over 70,000 hours of continuous use.

internal media player plug and play

Built-in Media Player

As well as having AV inputs, these displays also have a built-in HD media player allowing you to run content from a USB stick. Load your pictures and videos onto a USB memory stick then insert it into the display and the screen will then start playing the pictures and videos in a continuous loop. 65” and 70” models have an Android media player that can be easily upgraded to a network version and updated using our cloud based CMS.

integrated speakers

Built-in Speakers

The displays have two integrated slimline speakers for applications that involve an audio element.

large Digital Signage Screen
digital signage environmentally friendly power timer

Power Timer

The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.

led backlight eco friendly technology

LED Backlight Technology

Thanks to their LED backlight these displays offer improved brightness and contrast as well as drastically improving their lifespan and reducing their power consumption. Unlike other forms of light this technology is mercury free; making it even more eco-friendly.

internal air conditioning temperature control

Smart Temperature Control System

The internal air-conditioning system allows the screens to be in constant use. A fanless cooling system keeps their panels and other internal components at the optimum working temperature; ensuring a long and reliable life for your screens.

RS-232 Remote Control

RS-232 Remote Control

Once your screen is connected via RS-232 you can control, scale and customise your display remotely over short and long distances.

SPECIFICATION

65 Inch – M65P2-D

DISPLAY AREA

1432.5×807

PIXEL PITCH

0.744×0.744

UNIT SIZE

1468.5x843x91.21

PACKAGE SIZE

1650x1030x340

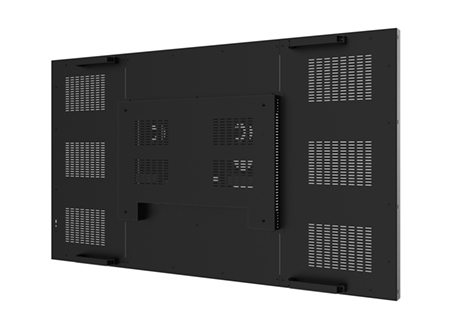

VESA HOLES

600×400

NET WEIGHT

57kg

GROSS WEIGHT

66.1kg

POWER CONSUMPTION (W)

280

CONTRAST RATIO

5000:1

COLOUR

1.07G

Panel

RESOLUTION

1920×1080 (65″ & 70″)
3840×2160 (84″)

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

450

VIEWING ANGLE

178°

AV Inputs

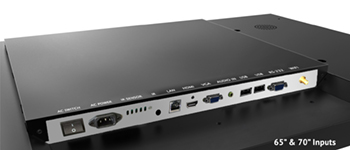

VIDEO INPUTS (65″ & 70″)

HDMI, VGA

CONTROL

RS-232

AUDIO

Audio Socket (3.5mm)

SPEAKER TYPE

2W, 4Ω (x2)

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Media Player (65″ & 70″)

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

MEDIA RESOLUTION

1080×1920

INTERNAL MEMORY

6GB

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

CPU

Dual-Core Cortex-A9 @1.6GHz

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

GPU

Mali-400 MP4 @400MHz

RAM

1GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

WI-FI

802.11b/g/n (Network version screen only)

OS

Android 4.2.2

LAN

OpenGL ES 1.1/2.0, OpenVG 1.1

Accessories

INCLUDED

Remote Control, User Manual, Power Lead

70 Inch – M70P2-D

DISPLAY AREA

1549.44×871.56

PIXEL PITCH

0.807×0.807

UNIT SIZE

1612x934x83.1

PACKAGE SIZE

1800x1110x340

VESA HOLES

600×500

NET WEIGHT

63.2kg

GROSS WEIGHT

68kg

POWER CONSUMPTION (W)

350

CONTRAST RATIO

4000:1

COLOUR

16.7M

Panel

RESOLUTION

1920×1080 (65″ & 70″)
3840×2160 (84″)

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

450

VIEWING ANGLE

178°

AV Inputs

VIDEO INPUTS (65″ & 70″)

HDMI, VGA

CONTROL

RS-232

AUDIO

Audio Socket (3.5mm)

SPEAKER TYPE

2W, 4Ω (x2)

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Media Player (65″ & 70″)

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

MEDIA RESOLUTION

1080×1920

INTERNAL MEMORY

6GB

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

CPU

Dual-Core Cortex-A9 @1.6GHz

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

GPU

Mali-400 MP4 @400MHz

RAM

1GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

WI-FI

802.11b/g/n (Network version screen only)

OS

Android 4.2.2

LAN

OpenGL ES 1.1/2.0, OpenVG 1.1

Accessories

INCLUDED

Remote Control, User Manual, Power Lead

84 Inch – M84P2-B

DISPLAY AREA

1863.5×1049.63

PIXEL PITCH

0.970×0.970

UNIT SIZE

1915x1107x93

PACKAGE SIZE

2140x1450x450

VESA HOLES

600×400/600×800

NET WEIGHT

83.5kg

GROSS WEIGHT

175.5kg

POWER CONSUMPTION (W)

420

CONTRAST RATIO

2000:1

COLOUR

1.06B

VIDEO INPUTS

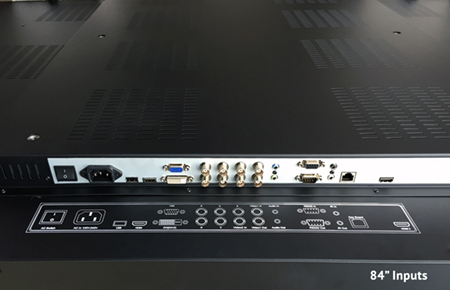

HDMI (1080p), HDMI (4K), VGA, DVI, AV1, AV2, YPbPr, RGB/HV, Audio Socket (3.5mm)

Panel

RESOLUTION

1920×1080 (65″ & 70″)
3840×2160 (84″)

ASPECT RATIO

16:9

BRIGHTNESS (CD/M2)

450

VIEWING ANGLE

178°

AV Inputs

VIDEO INPUTS (65″ & 70″)

HDMI, VGA

CONTROL

RS-232

AUDIO

Audio Socket (3.5mm)

SPEAKER TYPE

2W, 4Ω (x2)

Environmental

OPERATING TEMPERATURE

0°C to 50°C

STORAGE TEMPERATURE

-30°C to 60°C

OPERATING HUMIDITY

10% to 80%

STORAGE HUMIDITY

5% to 95%

Media Player (65″ & 70″)

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

MEDIA RESOLUTION

1080×1920

INTERNAL MEMORY

6GB

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

CPU

Dual-Core Cortex-A9 @1.6GHz

MEDIA FORMATS

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

GPU

Mali-400 MP4 @400MHz

RAM

1GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

WI-FI

802.11b/g/n (Network version screen only)

OS

Android 4.2.2

LAN

OpenGL ES 1.1/2.0, OpenVG 1.1

Accessories

INCLUDED

Remote Control, User Manual, Power Lead
