Update Via The Cloud
Updating your screens is extremely simple. Login to www.MySignagePortal.com to upload media, manage playlists, create your own templates and schedule content for whenever you want; giving you complete control over your network. No special software installation or dedicated PC is required, you can update your screens from anywhere in the world with an internet connection.

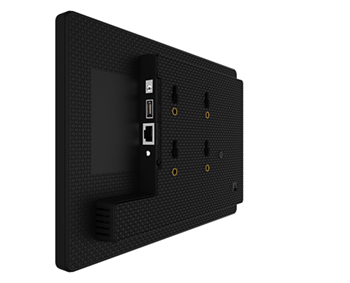

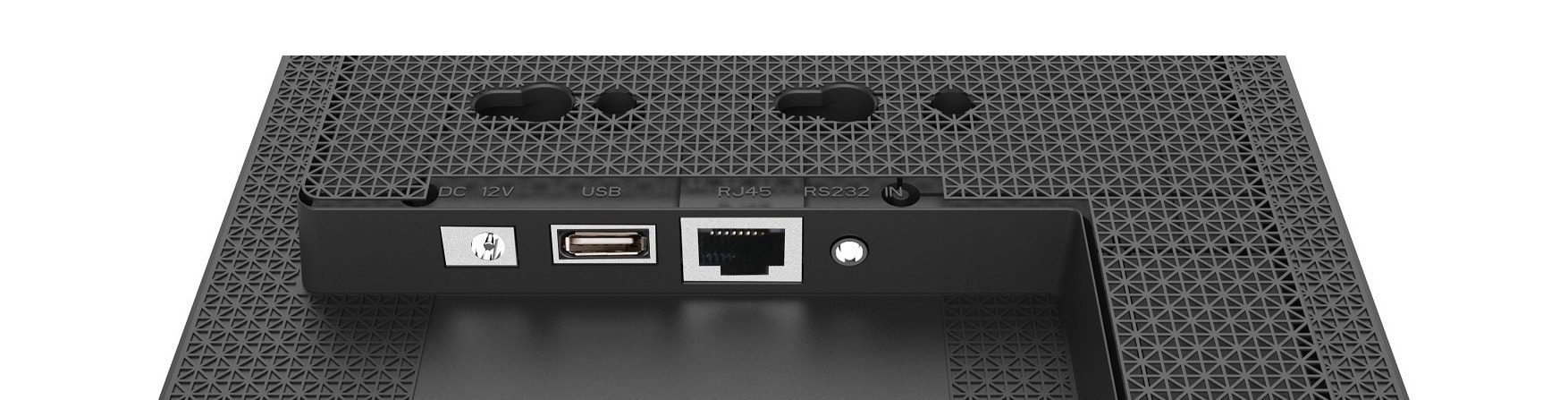

Power over Ethernet (PoE)
Your screen can either be powered using the power cable provided or by using an Ethernet cable. This makes the display extremely flexible, allowing you to supply power to the screen using the more convenient of the two methods.
Create Custom layouts
This feature allows you to design your own layout with different media zones for your images, videos, webpages, time, date and also allows you to add a scrolling message or RSS feed. You can even give your layout a corporate “skin” to go around your media zones.
Schedule Playlists
Display what you like, when you like. Create playlists that will automatically display your desired content a pre-determined times and dates. Whatever your scheduling requirements, our system can support them.
User Management
Create as many bespoke user accounts as you like. You may wish to limit some functions of the software to specific users, for example you may wish to allow a receptionist to edit the scrolling message on the screen in the reception area but nothing else – our system allows full user rights control.
Ultimate Remote Control
Thanks to the all-in-one nature of the screens you can remotely control functions such as rebooting or formatting your screen, playing and stopping content, adjusting the volume and scheduling on/off times; a truly centralised solution.
Multi-Screen Synchronisation
You can synchronise the content across multiple screens that are connected to the same network. This is ideal for advertising networks on escalators or along lengthy corridors.
SPECIFICATION

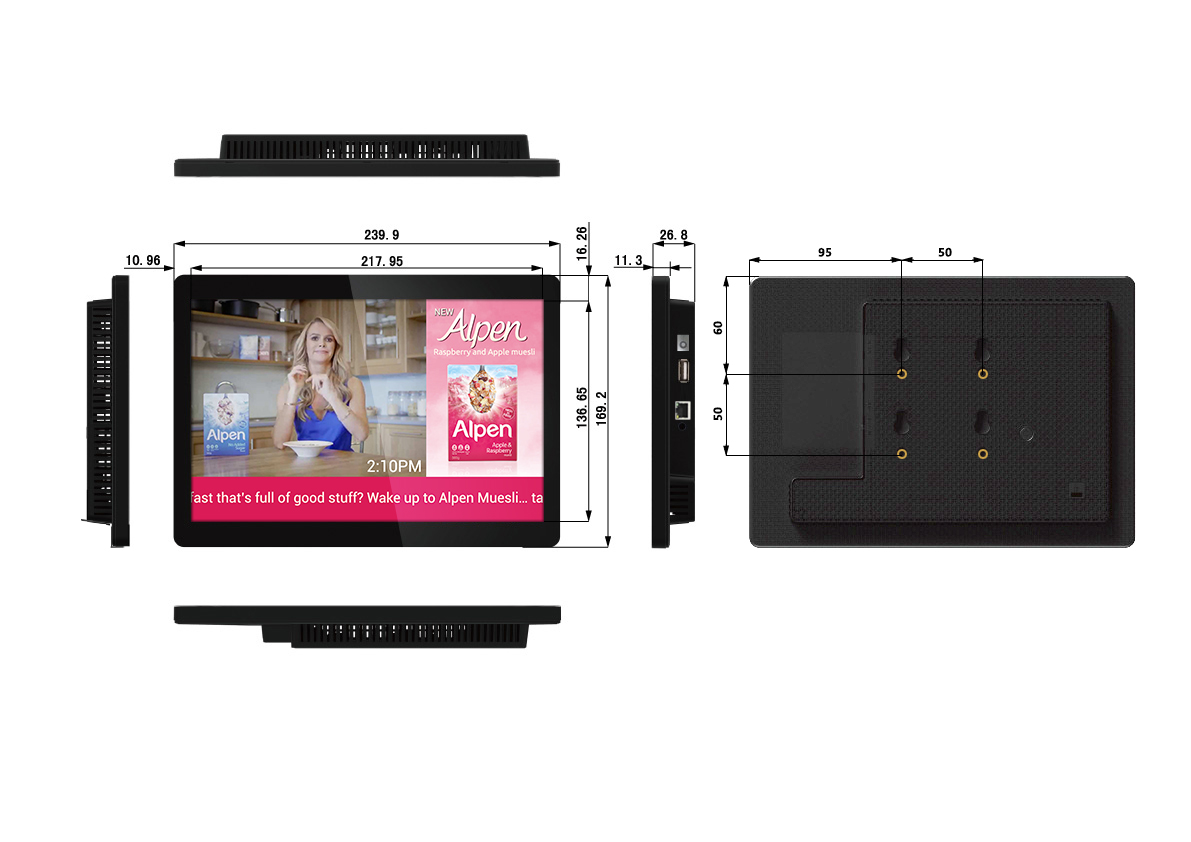

Display Area
217.95×136.65
Unit Size
239.9×169.2×26.8
Package Size
333x278x75
VESA Holes
50×50
Net Weight
1.5
Gross Weight
2.2
Speaker Type
1.5W, 8Ω
Resolution
1280×800
Aspect Ratio
16:10
Brightness (cd/m2)
450
Colour
16.7M
Viewing Angle
178°
Contrast Ratio
800:1
Power Consumption (W)
18
Input Voltage
AC110~240V (50Hz~60Hz)
PoE Mode
24V Passive
Operating Temperature
0°C to 50°C
Storage Temperature
-30°C to 60°C
Operating Humidity
10% to 80%
Storage Humidity
5% to 95%
Media Formats
Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
Media Resolution
1920×1080/1080×1920
Internal Memory
6GB
CPU
Quad-Core Cortex-A7 , up to 1.3GHz (RK3126)
GPU
ARM Mali-400MP2
RAM
1GB DDR3
ROM
6GB NAND
USB
USB2.0 HOST (x1)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11b/g/n (Network version screen only)
OS
Android 5.0.2
Graphic Engine
OpenGL ES 1.1/2.0
